This example shows how to connect SCS to Sap2000 in
order to automatically import into SCS the joint actions for some specific load
cases. You need to have a licensed version of Sap2000 (it was made with version
14).
Actually now (SCS version 15 and later) SCS has built in the buttons to import
from more recent Sap2000 version (16 and 17) but the example is left here as a
possible tutorial for SCS APIs usage.
It was tested with Visual Basic Express 2010.
|
|
|
|
Option Explicit On
Option Strict Off
'ADD SCS.exe (default location under ...Program Files (x86)\Steel Studio\SCS or equivalent) to your References. SCS.exe (no dll needed) is a .NET type reference. Set 'Copy Local' = True
'In some versions of Visual Studio it might be necessary to set x86 as a target reference to make SCS APIs work
'The macro was tested for Sap2000 version 14 in Microsoft Visual Basic 2010 Express (framework 4)
Imports mySCS
Imports SapModel
Imports Sap2000
Imports System.Math
Imports System.Runtime.InteropServices
Imports System.Runtime.InteropServices.ComTypes

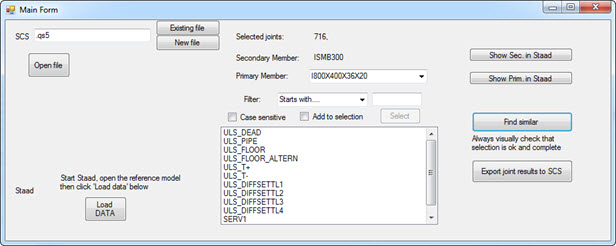

Public Class Form2a
Inherits System.Windows.Forms.Form
Private scsObj As mySCS.frmShapedStart
Private scsModuleGeneric As mySCS.frmFP1 'all modules inherit from type frmFP1 therefore this can point out to any form
Private WorkingPath As String = IO.Directory.GetParent(IO.Directory.GetParent(Application.StartupPath).FullName.ToString).FullName.ToString & "\ExampleFiles\"
Private booFirstTime As Boolean = True
Private booPrimaryMemberIsaColumn As Boolean = False
Private booBasePlateJoint As Boolean = False
Private booBraceJoint As Boolean = False
Private booSpliceJoint As Boolean = False
Private formYsize As Integer
Private tipHowToCreateNewSCSFile As String = "To create a new file use '*'." & vbCrLf & "Example: write *.em3 in the textbox and clicking the 'New' button a new em3 (moment connection) file will be launched."
Public Sub New()
' This call is required by the Windows Form Designer.
InitializeComponent()
' Add any initialization after the InitializeComponent() call.
formYsize = Me.Size.Height
Me.Size = New Point(324, formYsize)
Me.TopMost = True
btnFormOnTop_Click(btnFormOnTop, New System.EventArgs) 'comment this if you want topmost to true because this command will switch the above command
ToolTip1.SetToolTip(txbSCSfileName, ToolTip1.GetToolTip(btnNewSCS))
End Sub
Private Sub btnSCSopenFile1_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles btnSCSopenFile.Click, btnNewSCS.Click
CheckifSCSIsOpen()
Dim fileName As String = txbSCSfileName.Text
'if the file name is just an asterisk, a new file is created
If (fileName.Length = 5 AndAlso fileName.Substring(0, 2) = "*.") Or (fileName.Length = 4 AndAlso fileName.Substring(0, 1) = ".") Then
If CType(sender, Button).Name = btnSCSopenFile.Name Then
MsgBox("a new file will be created")
End If
Dim extensionString As String = fileName.Substring(fileName.Length - 3, 3)
scsObj.NewFileAndAssignGenericModuleObject(extensionString, scsModuleGeneric) 'open file directly then, adding the generic module reference will assign the new form to this object
Else
If CType(sender, Button).Name = btnSCSopenFile.Name Then
scsObj.OpenFileAndAssignGenericModuleObject(WorkingPath & txbSCSfileName.Text, scsModuleGeneric) 'open file directly then, adding the generic module reference will assign the new form to this object
Else
MsgBox(tipHowToCreateNewSCSFile)
End If
End If
End Sub
Private SapObject As Sap2000.SapObject
Private SapModel As cSapModel
Private ret As Long
Private booFormAlreadyOpen As Boolean = False
Private JointData() As Sap2000JointData
Private secframeList() As String
Private jointList() As String
'Private FrameElems() As FrameElement
Private Sub btnOpenFile_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles btnSap2000OpenFile.Click
'create Sap2000 object
SapObject = New Sap2000.SapObject
'start Sap2000 application
SapObject.ApplicationStart()
Dim SapFile As New Sap2000.cFile
ret = SapFile.OpenFile(WorkingPath & txbSapFileName.Text)
'attach SapModel object to the current file running in the application
SapModel = SapObject.SapModel
End Sub
Private Sub CheckifSapIsOpen()
If SapModel Is Nothing Then 'if Sap is running already and the right file is open, the open file button click can be avoided and the SapModel object is assigned below
SapObject = New Sap2000.SapObject
SapModel = SapObject.SapModel
End If
End Sub
Private Sub CheckifSCSIsOpen()
If scsObj Is Nothing Then
scsObj = New mySCS.frmShapedStart
scsObj.ApplicationStart()
End If
End Sub
Private Function IsBasePlateJoint() As Boolean
Dim boo As Boolean = False
Try
Dim SCSfileExtension As String = txbSCSfileName.Text.Substring(txbSCSfileName.Text.Length - 4, 4)
If SCSfileExtension.StartsWith(".") Then
Select Case SCSfileExtension
Case Is = ".cb8"
Return True
End Select
End If
Return boo
Catch ex As Exception
Return False
End Try
End Function
Private Function IsBraceJoint() As Boolean
Dim boo As Boolean = False
Try
Dim SCSfileExtension As String = txbSCSfileName.Text.Substring(txbSCSfileName.Text.Length - 4, 4)
If SCSfileExtension.StartsWith(".") Then
Select Case SCSfileExtension
Case Is = ".br9"
Return True
End Select
End If
Return boo
Catch ex As Exception
Return False
End Try
End Function
Private Function IsSpliceJoint() As Boolean
Dim boo As Boolean = False
Try
Dim SCSfileExtension As String = txbSCSfileName.Text.Substring(txbSCSfileName.Text.Length - 4, 4)
If SCSfileExtension.StartsWith(".") Then
Select Case SCSfileExtension
Case Is = ".sp4"
Return True
End Select
End If
Return boo
Catch ex As Exception
Return False
End Try
End Function
Private Function IsPrimaryMemeberAColumn() As Boolean
Dim boo As Boolean = False
Dim msgtxt As String = "Select SCS file (it's needed to determine primary members) then re-load data"
If txbSCSfileName.TextLength < 4 Then
MsgBox(msgtxt)
Else
Dim SCSfileExtension As String = txbSCSfileName.Text.Substring(txbSCSfileName.Text.Length - 4, 4)
If SCSfileExtension.StartsWith(".") Then
Select Case SCSfileExtension
Case Is = ".fp1", ".xl1", ".qs5", ".em3", ".we1"
Return True
End Select
Else
MsgBox(msgtxt)
End If
End If
Return boo
End Function
Private Sub btnSap2000DoStuff_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles btnSap2000DoStuff.Click
CheckifSapIsOpen()
lblSelJointsStrings.Text = Nothing
lblSecMemberProperty.Text = Nothing
cobPrimaryMember.Items.Clear()
booPrimaryMemberIsaColumn = IsPrimaryMemeberAColumn()
booBasePlateJoint = IsBasePlateJoint()
booBraceJoint = IsBraceJoint()
booSpliceJoint = IsSpliceJoint()
If booBasePlateJoint Then
btnPrimMembShow.Visible = False
lblPrimaryMember.Visible = False
cobPrimaryMember.Visible = False
Else
btnPrimMembShow.Visible = True
lblPrimaryMember.Visible = True
cobPrimaryMember.Visible = True
End If
MsgBox("Go to the open Sap model: select SECONDARY members AND JOINTS you want loads from THEN click OK", MsgBoxStyle.OkOnly)
Dim a As Integer
Dim b() As Int32
Dim c() As String
ret = SapModel.SelectObj.GetSelected(a, b, c)
Dim strSelectedPoints As String = Nothing
ReDim jointList(0)
Dim NumberOfJoints As Integer = 0
Dim NumberOfSecondaryMembers As Integer = 0
For i = 0 To a - 1
Select Case b(i) '1 stands for point selection, 2 for frames
Case Is = 1
ReDim Preserve jointList(NumberOfJoints)
jointList(NumberOfJoints) = c(i)
NumberOfJoints += 1
strSelectedPoints += c(i) + ", "
Case Is = 2
ReDim Preserve secframeList(NumberOfSecondaryMembers)
secframeList(NumberOfSecondaryMembers) = c(i)
NumberOfSecondaryMembers += 1
End Select
Next
If NumberOfSecondaryMembers = 0 Then
MsgBox("no secondary member selected, go to Sap and modify selection")
btnSap2000DoStuff_Click(sender, e)
Exit Sub
End If
If NumberOfJoints = 0 Then
MsgBox("no joints selected, go to Sap and modify selection")
btnSap2000DoStuff_Click(sender, e)
Exit Sub
End If
lblSelJointsStrings.Text = strSelectedPoints
'variables necessary for Sap API calls
Dim JointArrayMaxIndex As Integer = Max(0, NumberOfJoints - 1)
ReDim JointData(JointArrayMaxIndex)
Dim NumberItems As Integer
Dim ObjectType() As Integer
Dim ObjectName() As String
Dim PointNumber() As Integer
Dim DataB_ObjName(JointArrayMaxIndex, 0) As String
Dim DataB_PointNumber(JointArrayMaxIndex, 0) As String
Dim DataB_PropertyName(JointArrayMaxIndex, 0) As String
Dim maxExt As Integer = 0
Dim PropName As String = Nothing
Dim ObjType As Long
Dim Var As Boolean
Dim sVarRelStartLoc As Double
Dim sVarTotalLength As Double
Dim Members As New List(Of String)
Dim Area As Double
Dim as2 As Double
Dim as3 As Double
Dim Torsion As Double
Dim I22 As Double
Dim I33 As Double
Dim S22 As Double
Dim S33 As Double
Dim Z22 As Double
Dim Z33 As Double
Dim R22 As Double
Dim R33 As Double
Dim nelm As Long
Dim Elm() As String
Dim RDI() As Double
Dim RDJ() As Double
Dim Point1 As String
Dim Point2 As String
Dim x As Double, y As Double, z As Double
Dim x2 As Double, y2 As Double, z2 As Double
ret = SapModel.FrameObj.GetElm(secframeList(0), nelm, Elm, RDI, RDJ)
If Elm Is Nothing Then
MsgBox("run analysis and then restart command")
Exit Sub
End If
ret = SapModel.LineElm.GetProperty(Elm(0), PropName, ObjType, Var, sVarRelStartLoc, sVarTotalLength)
If NumberOfSecondaryMembers > 1 Then
Dim PropName2 As String
For k = 1 To NumberOfSecondaryMembers - 1
ret = SapModel.FrameObj.GetElm(secframeList(k), nelm, Elm, RDI, RDJ)
ret = SapModel.LineElm.GetProperty(Elm(0), PropName2, ObjType, Var, sVarRelStartLoc, sVarTotalLength)
If PropName2 <> PropName Then
MsgBox("secondary members must have the same section property, go to Sap and modify selection")
btnSap2000DoStuff_Click(sender, e)
Exit Sub
End If
Next
End If
lblSecMemberProperty.Text = PropName
For k = 0 To JointArrayMaxIndex
ret = SapModel.PointElm.GetConnectivity(jointList(k), NumberItems, ObjectType, ObjectName, PointNumber)
Dim maxExtTemp As Integer = NumberItems - 1
Dim listItemstoExclude As New List(Of Integer)
For u = 0 To maxExtTemp
If ObjectType(u) <> 2 Then
listItemstoExclude.Add(u)
End If
Next
maxExtTemp += -listItemstoExclude.Count
If maxExtTemp < 0 Then
MsgBox("no useful joints selected")
Exit Sub
End If
JointData(k) = New Sap2000JointData(maxExtTemp + 1)
JointData(k).PrimaryMemberIsaColumn = booPrimaryMemberIsaColumn
JointData(k).BasePlateJoint = booBasePlateJoint
JointData(k).BraceJoint = booBraceJoint
JointData(k).Label = jointList(k)
If maxExtTemp > maxExt Then
maxExt = maxExtTemp
ReDim Preserve DataB_ObjName(JointArrayMaxIndex, maxExt)
ReDim Preserve DataB_PointNumber(JointArrayMaxIndex, maxExt)
ReDim Preserve DataB_PropertyName(JointArrayMaxIndex, maxExt)
End If
Dim q As Integer
Dim counting As Integer = 0
For qq = 0 To NumberItems - 1
If listItemstoExclude.Contains(qq) Then
counting += 1
Else
q = qq - counting
DataB_ObjName(k, q) = ObjectName(q)
ret = SapModel.LineElm.GetProperty(DataB_ObjName(k, q), PropName, ObjType, Var, sVarRelStartLoc, sVarTotalLength)
ret = SapModel.PropFrame.GetSectProps(PropName, Area, as2, as3, Torsion, I22, I33, S22, S33, Z22, Z33, R22, R33)
DataB_PropertyName(k, q) = PropName
JointData(k).GuessedPrimaryMember_property_OverWrite = False
JointData(k).PropertyName(q) = PropName
JointData(k).ObjName(q) = ObjectName(q) 'this is the analysis label, example 36-2
JointData(k).PointNumber(q) = PointNumber(q)
JointData(k).PropertyRefValue(q) = S33
JointData(k).GuessedSecondaryMember_property = PropName
Members.Add(PropName)
JointData(k).GetObjNameRoot(q) 'this is the model label, example 36
ret = SapModel.LineElm.GetPoints(ObjectName(q), Point1, Point2)
If Point1 = jointList(k) Then
JointData(k).ObjNode(q) = 0
Else
JointData(k).ObjNode(q) = 1
End If
ReDim Preserve JointData(k).FrameElements(q)
ret = SapModel.FrameObj.GetPoints(JointData(k).ObjectNameRoot(q), Point1, Point2)
ret = SapModel.PointObj.GetCoordCartesian(Point1, x, y, z)
ret = SapModel.PointObj.GetCoordCartesian(Point2, x2, y2, z2)
Dim co1() As Double = {x, y, z}
Dim co2() As Double = {x2, y2, z2}
JointData(k).FrameElements(q) = New FrameElement(JointData(k).ObjectNameRoot(q), co1, co2) 'this is the model label, example 36
End If
Next
JointData(k).GuessPrimaryMembersAndAssignSecMembers(secframeList)
Next
If JointArrayMaxIndex > 0 Then
For uu = 1 To JointArrayMaxIndex
For jjjj = 0 To uu - 1
If JointData(jjjj).GuessedPrimaryMember_property <> JointData(uu).GuessedPrimaryMember_property Then
MsgBox("problem with primary members, it seems members with labels " & JointData(jjjj).GuessedPrimaryMember_Name & " and " & JointData(uu).GuessedPrimaryMember_Name & " have different properties, please check")
Exit For
End If
Next
Next
End If
If booFirstTime Then
Me.Size = New Point(924, formYsize)
cobFilter.SelectedIndex = 0
lblWarning.Text = ""
End If
Dim MembersDistinctList As New List(Of String)
MembersDistinctList = FindDistinctValues(Members)
For r = 0 To MembersDistinctList.Count - 1
cobPrimaryMember.Items.Add(MembersDistinctList.Item(r))
Next
AssignComboBoxValue(cobPrimaryMember, JointData(0).GuessedPrimaryMember_property)
'If booFirstTime Then '141127 revision: it's better to reload everytime so that, if file is changed, the correct load combos are loaded
MemorizeListBoxSelection()
ListBox1.Items.Clear()
Dim NumberNames As Long
Dim MyName() As String
ret = SapModel.RespCombo.GetNameList(NumberNames, MyName)
For qq = 0 To NumberNames - 1
ListBox1.Items.Add(MyName(qq))
Next
If LoadCasesSelected.Count > 0 Then '141127 revision to reselect previous load cases after data are reloaded
For ww = 0 To LoadCasesSelected.Count - 1
For i = 0 To ListBox1.Items.Count - 1
If ListBox1.Items(i).ToString = LoadCasesSelected(ww) Then
ListBox1.SetSelected(i, True)
Exit For
End If
Next
Next
End If
booFirstTime = False
'End If
End Sub
Public Sub ExportResults(ByVal LoadCases As String())
'ret = SapModel.Analyze.RunAnalysis
'clear all case and combo output selections
If LoadCases.Count = 0 Then
MsgBox("select load cases")
Exit Sub
End If
Dim MyUnits As SapModel.eUnits
MyUnits = SapModel.GetPresentUnits
Dim SapUnitsString As String = MyUnits.ToString
Dim SapForce As String
Dim firstStop As Integer = SapUnitsString.IndexOf("_")
SapForce = SapUnitsString.Substring(0, firstStop)
Dim multiplierForce As Double = 1
Dim multiplierMoment As Double = 1
Dim roundingfiguresForce As Integer = 2
Dim roundingfiguresMoment As Integer = 2
Dim secondStop As Integer = SapUnitsString.Substring(firstStop + 1, SapUnitsString.Length - firstStop - 1).IndexOf("_")
Dim SapLength As String = SapUnitsString.Substring(firstStop + 1, secondStop)
Try
ret = SapModel.CoordSys.SetCoordSys("GLOBAL", 0, 0, 0, 0, 0, 0)
Catch ex As Exception
MsgBox("ERROR SETTING COORD SYS")
End Try
ret = SapModel.Results.Setup.DeselectAllCasesAndCombosForOutput
'set case and combo output selections
For Each value In LoadCases
ret = SapModel.Results.Setup.SetComboSelectedForOutput(value)
Next
Dim NumberResults As Long
Dim Obj() As String
Dim Elm() As String
'Dim PointElm() As String
Dim LoadCase() As String
Dim StepType() As String
Dim StepNum() As Double
Dim F1() As Double
Dim F2() As Double
Dim F3() As Double
Dim JM1() As Double
Dim JM2() As Double
Dim JM3() As Double
Dim F1ta(), F1tb(), F1tc() As Double
Dim F2ta(), F2tb(), F2tc() As Double
Dim F3ta(), F3tb(), F3tc() As Double
Dim JM1ta(), JM1tb(), JM1tc() As Double
Dim JM2ta(), JM2tb(), JM2tc() As Double
Dim JM3ta(), JM3tb(), JM3tc() As Double
Dim M2() As Double
Dim M3() As Double
Dim FrameLabel As String
Dim ObjSta() As Double
Dim ElmSta() As Double
Dim P() As Double
Dim V2() As Double
Dim V3() As Double
Dim T() As Double
Dim LCname() As String
Dim Pf(), V2f(), V3f(), M2f(), M3f(), Tf() As Double
Dim Pftemp(), V2ftemp(), V3ftemp(), M2ftemp(), M3ftemp(), Tftemp() As Double
Dim totalCasestoExport As Integer
For x = 0 To JointData.Length - 1
If booBasePlateJoint Then
Dim JointLabel As String
Try
JointLabel = JointData(x).Label
Catch ex As Exception
MsgBox("run analysis and then restart command")
Exit Sub
End Try
ret = SapModel.Results.JointReact(JointLabel, eItemTypeElm.Element, NumberResults, Obj, Elm, LoadCase, StepType, StepNum, F1, F2, F3, JM1, JM2, JM3)
If Elm Is Nothing Then
MsgBox("run analysis and then restart command")
Exit Sub
End If
Dim a As Double, b As Double, c As Double, Ang As Double
'to adjust if local axes of joint are rotated.
ret = SapModel.PointElm.GetLocalAxes(JointLabel, a, b, c)
a = a / 180 * PI
b = b / 180 * PI
c = c / 180 * PI
'to adjust if local axis of member is rotated
'To adjust if some 'advanced' features are used, like rotation for points or planes, MANUAL correction is needed, the macro doesn't get correct values automatically (it seems there are no SAP API commands to automate this)
ret = SapModel.LineElm.GetLocalAxes(JointData(x).GuessedSecondaryMember_Name(0), Ang)
Ang = Ang / 180 * PI
totalCasestoExport = NumberResults
ReDim Pf(totalCasestoExport - 1)
ReDim V2f(totalCasestoExport - 1)
ReDim V3f(totalCasestoExport - 1)
ReDim M2f(totalCasestoExport - 1)
ReDim M3f(totalCasestoExport - 1)
ReDim Tf(totalCasestoExport - 1)
ReDim LCname(totalCasestoExport - 1)
ReDim Pftemp(totalCasestoExport - 1)
ReDim V2ftemp(totalCasestoExport - 1)
ReDim V3ftemp(totalCasestoExport - 1)
ReDim M2ftemp(totalCasestoExport - 1)
ReDim M3ftemp(totalCasestoExport - 1)
ReDim Tftemp(totalCasestoExport - 1)
ReDim F1ta(totalCasestoExport - 1)
ReDim F2ta(totalCasestoExport - 1)
ReDim F3ta(totalCasestoExport - 1)
ReDim F1tb(totalCasestoExport - 1)
ReDim F2tb(totalCasestoExport - 1)
ReDim F3tb(totalCasestoExport - 1)
ReDim F1tc(totalCasestoExport - 1)
ReDim F2tc(totalCasestoExport - 1)
ReDim F3tc(totalCasestoExport - 1)
ReDim JM1ta(totalCasestoExport - 1)
ReDim JM2ta(totalCasestoExport - 1)
ReDim JM3ta(totalCasestoExport - 1)
ReDim JM1tb(totalCasestoExport - 1)
ReDim JM2tb(totalCasestoExport - 1)
ReDim JM3tb(totalCasestoExport - 1)
ReDim JM1tc(totalCasestoExport - 1)
ReDim JM2tc(totalCasestoExport - 1)
ReDim JM3tc(totalCasestoExport - 1)
For w = 0 To totalCasestoExport - 1
F1tc(w) = F1(w)
F2tc(w) = F2(w) * Cos(c) - F3(w) * Sin(c)
F3tc(w) = F2(w) * Sin(c) + F3(w) * Cos(c)
F1tb(w) = F3tc(w) * Sin(b) + F1tc(w) * Cos(b)
F2tb(w) = F2tc(w)
F3tb(w) = F3tc(w) * Cos(b) - F1tc(w) * Sin(b)
F1ta(w) = F1tb(w) * Cos(a) - F2tb(w) * Sin(a)
F2ta(w) = F1tb(w) * Sin(a) + F2tb(w) * Cos(a)
F3ta(w) = F3tb(w)
JM1tc(w) = JM1(w)
JM2tc(w) = JM2(w) * Cos(c) - JM3(w) * Sin(c)
JM3tc(w) = JM2(w) * Sin(c) + JM3(w) * Cos(c)
JM1tb(w) = JM3tc(w) * Sin(b) + JM1tc(w) * Cos(b)
JM2tb(w) = JM2tc(w)
JM3tb(w) = JM3tc(w) * Cos(b) - JM1tc(w) * Sin(b)
JM1ta(w) = JM1tb(w) * Cos(a) - JM2tb(w) * Sin(a)
JM2ta(w) = JM1tb(w) * Sin(a) + JM2tb(w) * Cos(a)
JM3ta(w) = JM3tb(w)
Select Case JointData(x).FrameElements(JointData(x).GuessedSecondaryMember_index(0)).MainDirection_0x_1y_2z_3xyPlane_4xzplane_5yzplane_6xyz
Case Is = 0
Pftemp(w) = -F1ta(w)
V2ftemp(w) = F2ta(w) * Cos(Ang) - F3ta(w) * Sin(Ang)
V3ftemp(w) = F2ta(w) * Sin(Ang) + F3ta(w) * Cos(Ang)
Tftemp(w) = JM1ta(w)
M2ftemp(w) = JM2ta(w) * Cos(Ang) - JM3ta(w) * Sin(Ang)
M3ftemp(w) = JM2ta(w) * Sin(Ang) + JM3ta(w) * Cos(Ang)
Case Is = 1
Pftemp(w) = -F2ta(w)
V2ftemp(w) = F3ta(w) * Cos(Ang) - F1ta(w) * Sin(Ang)
V3ftemp(w) = F3ta(w) * Sin(Ang) + F1ta(w) * Cos(Ang)
Tftemp(w) = JM2ta(w)
M2ftemp(w) = JM3ta(w) * Cos(Ang) - JM1ta(w) * Sin(Ang)
M3ftemp(w) = JM3ta(w) * Sin(Ang) + JM1ta(w) * Cos(Ang)
Case Is = 2
Pftemp(w) = -F3ta(w)
V2ftemp(w) = F1ta(w) * Cos(Ang) - F2ta(w) * Sin(Ang)
V3ftemp(w) = F1ta(w) * Sin(Ang) + F2ta(w) * Cos(Ang)
Tftemp(w) = JM3ta(w)
M2ftemp(w) = JM1ta(w) * Cos(Ang) - JM2ta(w) * Sin(Ang)
M3ftemp(w) = JM1ta(w) * Sin(Ang) + JM2ta(w) * Cos(Ang)
Case Else
If w = 0 Then MsgBox("check how to distribute correctly loads along member axes")
'formulas belew are not ok, just general reference, MANUAL modification necessary
Pftemp(w) = -F3ta(w)
V2ftemp(w) = F1ta(w)
V3ftemp(w) = F2ta(w)
Tftemp(w) = JM3ta(w)
M2ftemp(w) = JM1ta(w)
M3ftemp(w) = JM2ta(w)
End Select
If StepType(w) = Nothing Then
LCname(w) = LoadCase(w)
Else
LCname(w) = LoadCase(w) & ", " & StepType(w)
End If
Pf(w) = CheckMostStressingValue(Pf(w), Pftemp(w))
V2f(w) = CheckMostStressingValue(V2f(w), V2ftemp(w))
V3f(w) = CheckMostStressingValue(V3f(w), V3ftemp(w))
M2f(w) = CheckMostStressingValue(M2f(w), M2ftemp(w))
M3f(w) = CheckMostStressingValue(M3f(w), M3ftemp(w))
Tf(w) = CheckMostStressingValue(Tf(w), Tftemp(w))
Next
Else
For xx = 0 To JointData(x).GuessedSecondaryMember_Name.Length - 1
FrameLabel = JointData(x).GuessedSecondaryMember_Name(xx) 'example 36-2
ret = SapModel.Results.FrameForce(FrameLabel, eItemTypeElm.Element, NumberResults, Obj, ObjSta, Elm, ElmSta, LoadCase, StepType, StepNum, P, V2, V3, T, M2, M3)
Dim numberofStations As Integer = 1
Dim InitialVal As Double = ObjSta(0)
For qq = 1 To ObjSta.Count - 1
If ObjSta(qq) = InitialVal Then Exit For
numberofStations += 1
Next
Dim Delta As Integer = 0
If JointData(x).ObjNode(xx) = 1 Then Delta = numberofStations - 1
Dim w As Integer = 0
Dim LC As String = Nothing
If x = 0 And xx = 0 Then
totalCasestoExport = NumberResults / numberofStations
ReDim Pf(totalCasestoExport - 1)
ReDim V2f(totalCasestoExport - 1)
ReDim V3f(totalCasestoExport - 1)
ReDim M2f(totalCasestoExport - 1)
ReDim M3f(totalCasestoExport - 1)
ReDim Tf(totalCasestoExport - 1)
ReDim LCname(totalCasestoExport - 1)
End If
ReDim Pftemp(totalCasestoExport - 1)
ReDim V2ftemp(totalCasestoExport - 1)
ReDim V3ftemp(totalCasestoExport - 1)
ReDim M2ftemp(totalCasestoExport - 1)
ReDim M3ftemp(totalCasestoExport - 1)
ReDim Tftemp(totalCasestoExport - 1)
Dim refIndex As Integer
For w = 0 To totalCasestoExport - 1
refIndex = Delta + w * numberofStations
'note that in sap2000 P positive means tension, P negative means compression, same as SCS
Pftemp(w) = P(refIndex)
V2ftemp(w) = V2(refIndex)
V3ftemp(w) = V3(refIndex)
M2ftemp(w) = M2(refIndex)
M3ftemp(w) = M3(refIndex)
Tftemp(w) = T(refIndex)
If StepType(refIndex) = Nothing Then
LCname(w) = LoadCase(refIndex)
Else
LCname(w) = LoadCase(refIndex) & ", " & StepType(refIndex)
End If
Pf(w) = CheckMostStressingValue(Pf(w), Pftemp(w))
V2f(w) = CheckMostStressingValue(V2f(w), V2ftemp(w))
V3f(w) = CheckMostStressingValue(V3f(w), V3ftemp(w))
M2f(w) = CheckMostStressingValue(M2f(w), M2ftemp(w))
M3f(w) = CheckMostStressingValue(M3f(w), M3ftemp(w))
Tf(w) = CheckMostStressingValue(Tf(w), Tftemp(w))
Next
Next
End If
Next
If scsModuleGeneric Is Nothing Then
btnSCSopenFile1_Click(btnSCSopenFile, New System.EventArgs)
End If
Try
Dim SecMemberName As String = ChangeNameForHE(lblSecMemberProperty.Text)
Dim PrimMemberName As String = ChangeNameForHE(cobPrimaryMember.SelectedItem.ToString)
scsModuleGeneric.DataPage_Members.SecondaryMemberSection = SecMemberName
If booBasePlateJoint = False And booSpliceJoint = False Then scsModuleGeneric.DataPage_Members.PrimaryMemberSection = PrimMemberName
Select Case SapForce
Case Is = "lb"
scsModuleGeneric.FormUnits.ForceUnit = "lbf"
roundingfiguresForce = 0
Select Case SapLength
Case Is = "in"
scsModuleGeneric.FormUnits.MomentUnit = "lbf*in"
roundingfiguresMoment = 0
Case Is = "ft"
scsModuleGeneric.FormUnits.MomentUnit = "lbf*ft"
roundingfiguresMoment = 2
End Select
Case Is = "Kip", "kip"
scsModuleGeneric.FormUnits.ForceUnit = "kips"
roundingfiguresForce = 2
Select Case SapLength
Case Is = "in"
scsModuleGeneric.FormUnits.MomentUnit = "kips*in"
roundingfiguresMoment = 0
Case Is = "ft"
scsModuleGeneric.FormUnits.MomentUnit = "kips*ft"
roundingfiguresMoment = 2
End Select
Case Is = "KN", "kN"
scsModuleGeneric.FormUnits.ForceUnit = "kN"
roundingfiguresForce = 2
Select Case SapLength
Case Is = "m"
scsModuleGeneric.FormUnits.MomentUnit = "kN*m"
roundingfiguresMoment = 2
Case Is = "mm"
scsModuleGeneric.FormUnits.MomentUnit = "kN*mm"
roundingfiguresMoment = 0
Case Is = "cm"
scsModuleGeneric.FormUnits.MomentUnit = "kN*mm"
roundingfiguresMoment = 0
multiplierMoment = 10
End Select
Case Is = "N"
scsModuleGeneric.FormUnits.ForceUnit = "N"
roundingfiguresForce = 0
Select Case SapLength
Case Is = "m"
scsModuleGeneric.FormUnits.MomentUnit = "N*m"
roundingfiguresMoment = 0
Case Is = "mm"
scsModuleGeneric.FormUnits.MomentUnit = "N*mm"
roundingfiguresMoment = 0
Case Is = "cm"
scsModuleGeneric.FormUnits.MomentUnit = "N*mm"
roundingfiguresMoment = 0
multiplierMoment = 10
End Select
Case Is = "Tonf", "Ton", "ton", "tons"
scsModuleGeneric.FormUnits.ForceUnit = "kN"
roundingfiguresForce = 2
multiplierForce = 10
Select Case SapLength
Case Is = "m"
scsModuleGeneric.FormUnits.MomentUnit = "kN*m"
roundingfiguresMoment = 2
multiplierMoment = 10
Case Is = "mm"
scsModuleGeneric.FormUnits.MomentUnit = "kN*mm"
roundingfiguresMoment = 0
multiplierMoment = 10
Case Is = "cm"
scsModuleGeneric.FormUnits.MomentUnit = "kN*mm"
roundingfiguresMoment = 0
multiplierMoment = 100
End Select
Case Is = "Kgf", "kgf"
scsModuleGeneric.FormUnits.ForceUnit = "kg"
roundingfiguresForce = 0
Select Case SapLength
Case Is = "m"
scsModuleGeneric.FormUnits.MomentUnit = "daN*m"
roundingfiguresMoment = 1
multiplierMoment = 0.981
Case Is = "mm"
scsModuleGeneric.FormUnits.MomentUnit = "N*mm"
roundingfiguresMoment = 0
multiplierMoment = 9.81
Case Is = "cm"
scsModuleGeneric.FormUnits.MomentUnit = "kg*cm"
roundingfiguresMoment = 0
multiplierMoment = 1
End Select
End Select
For w = 0 To totalCasestoExport - 1
If w > 9 Then
MsgBox("Results are more than 10 arrays and import is stopped to 10")
Exit For
End If
scsModuleGeneric.DataPage_Loads.AxialForce(w) = Round(Pf(w) * multiplierForce, roundingfiguresForce).ToString
scsModuleGeneric.DataPage_Loads.ShearForceMajorAxis(w) = Round(V2f(w) * multiplierForce, roundingfiguresForce).ToString
scsModuleGeneric.DataPage_Loads.ShearForceMinorAxis(w) = Round(V3f(w) * multiplierForce, roundingfiguresForce).ToString
scsModuleGeneric.DataPage_Loads.MomentMajorAxis(w) = Round(M3f(w) * multiplierMoment, roundingfiguresMoment).ToString
'CAREFUL, MOMENT WEAK AXIS AND TORSION ARE NOT CALCULATED IN SOME SCS MODULES, MAKE SURE YOUR RESTRAINTS IN THE MODEL TAKE THIS INTO CONSIDERATION (hinges where necessary for pin type connections)
If scsModuleGeneric.DataPage_Loads.IsLoadApplicable(claDataPage_Loads.LoadType.MomentMinorAxis) Then scsModuleGeneric.DataPage_Loads.MomentMinorAxis(w) = (Round(M2f(w) * multiplierMoment, roundingfiguresMoment)).ToString
If scsModuleGeneric.DataPage_Loads.IsLoadApplicable(claDataPage_Loads.LoadType.Torsion) Then scsModuleGeneric.DataPage_Loads.Torsion(w) = (Round(Tf(w) * multiplierMoment, roundingfiguresMoment)).ToString
scsModuleGeneric.DataPage_Loads.CaseName(w) = LCname(w)
Next
MsgBox("done")
Catch ex As Exception
MsgBox("Error in exporting members")
End Try
End Sub
Private Function ChangeNameForHE(ByVal strR As String) As String
If strR.StartsWith("HE") Then
Dim NameMovingtheLetterToFront As String
NameMovingtheLetterToFront = strR.Substring(0, 2) & strR.Substring(strR.Length - 1, 1) & strR.Substring(2, strR.Length - 3)
Return NameMovingtheLetterToFront
Else
Return strR
End If
End Function
Private Function CheckMostStressingValue(ByVal vl1 As Double, ByVal vl2 As Double) As Double
If Abs(vl1) > Abs(vl2) Then
Return vl1
Else
Return vl2
End If
End Function
Public Sub AssignComboBoxValue(ByRef cob As ComboBox, ByVal stringa As String)
For i = 0 To cob.Items.Count - 1
If cob.Items(i).ToString = stringa Then
cob.SelectedIndex = i
Exit For
End If
Next
End Sub
Public Function FindDistinctValues(ByVal ListaStart As List(Of String)) As List(Of String)
Dim itemsToRemove As New List(Of Integer)
For j = 1 To ListaStart.Count - 1
For jj = 0 To j - 1
If ListaStart.Item(j) = ListaStart.Item(jj) Then
itemsToRemove.Add(j)
Exit For
End If
Next
Next
If itemsToRemove.Count > 0 Then
For i = itemsToRemove.Count - 1 To 0 Step -1
ListaStart.RemoveAt(itemsToRemove.Item(i))
Next
End If
Return ListaStart
End Function
Private Sub ExitButton_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles btnExitSap.Click
SapObject.ApplicationExit(False)
SapModel = Nothing
SapObject = Nothing
End Sub
Public Sub ShowMembers(ByVal _1primary_2secondary As Integer)
If _1primary_2secondary = 1 Or _1primary_2secondary = 2 Then
Dim target As String
CheckifSapIsOpen()
If JointData IsNot Nothing Then
ret = SapModel.SelectObj.ClearSelection
For j = 0 To jointList.Count - 1
ret = SapModel.PointObj.SetSelected(jointList(j).ToString, True)
Next
For j = 0 To JointData.Count - 1
For jj = 0 To JointData(j).ObjectCount - 1
If _1primary_2secondary = 1 Then
target = JointData(j).GuessedPrimaryMember_property
Else
target = JointData(j).GuessedSecondaryMember_property
End If
If JointData(j).PropertyName(jj) = target Then
ret = SapModel.FrameObj.SetSelected(JointData(j).ObjectNameRoot(jj), True)
End If
Next
Next
ret = SapModel.View.RefreshView
End If
End If
End Sub
Private strWarning As String = "You cannot choose more than 10 cases"
Private Sub btnSecMembShow_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles btnSecMembShow.Click
ShowMembers(2)
End Sub
Private Sub btnPrimMembShow_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles btnPrimMembShow.Click
ShowMembers(1)
End Sub
Private Sub cobPrimaryMember_SelectedIndexChanged(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles cobPrimaryMember.SelectedIndexChanged
For Each item In JointData
item.GuessedPrimaryMember_property_OverWrite = True
item.GuessedPrimaryMember_property = cobPrimaryMember.SelectedItem
Next
End Sub
Private LoadCasesSelected As String()
Private Sub btnExportToSCS_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles btnExportToSCS.Click
MemorizeListBoxSelection()
ExportResults(LoadCasesSelected)
Personalization()
End Sub
Private Sub Personalization()
scsModuleGeneric.OtherControls.YourComments = "Output from joints " & lblSelJointsStrings.Text
End Sub
Private Sub MemorizeListBoxSelection()
Dim value As ListBox.SelectedObjectCollection
value = ListBox1.SelectedItems
Dim totalnumber As Integer = value.Count
If totalnumber > 10 Then
lblWarning.Text = strWarning & ", only first 10 cases will be exported"
Else
lblWarning.Text = ""
End If
ReDim LoadCasesSelected(totalnumber - 1)
For i = 0 To Min(10, totalnumber - 1)
LoadCasesSelected(i) = value(i).ToString
Next
End Sub
Private Sub btnFilter_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles btnFilter.Click
Dim stringToLookFor As String = txbFilter.Text
If chbFilter.Checked = False Then ListBox1.ClearSelected()
Dim booIgnoreCase As Boolean = Not chbCaseSensitive.Checked
Dim coun As Integer = 0
Dim strComp As System.StringComparison = StringComparison.CurrentCultureIgnoreCase
If chbCaseSensitive.Checked Then strComp = StringComparison.CurrentCulture
For i = 0 To ListBox1.Items.Count - 1
Select Case cobFilter.SelectedIndex
Case Is = 0
If ListBox1.Items(i).ToString.StartsWith(stringToLookFor, booIgnoreCase, Nothing) Then
ListBox1.SetSelected(i, True)
coun += 1
End If
Case Is = 1
If ListBox1.Items(i).ToString.IndexOf(stringToLookFor, 0, strComp) > -1 Then
ListBox1.SetSelected(i, True)
coun += 1
End If
End Select
Next
If coun > 10 Then
lblWarning.Text = strWarning
Else
lblWarning.Text = ""
End If
End Sub
Private Sub btnExitSCS_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles btnExitSCS.Click
scsModuleGeneric.Close()
scsModuleGeneric = Nothing
End Sub
Private Sub btnFormOnTop_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles btnFormOnTop.Click
If Me.TopMost Then
Me.TopMost = False
btnFormOnTop.Text = "Keep form on top of others"
Else
Me.TopMost = True
btnFormOnTop.Text = "Don't keep form on top of others"
End If
End Sub
Private Sub btnFindSimilar_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles btnFindSimilar.Click
lblVisualCheck.Visible = True
Dim NumberNames As Long
Dim MyName() As String
Dim NumberItems As Integer
Dim ObjectType() As Integer
Dim ObjectName() As String
Dim PointNumber() As Integer
Dim PropName As String = Nothing
Dim ObjType As Long
Dim Var As Boolean
Dim sVarRelStartLoc As Double
Dim sVarTotalLength As Double
Dim SecProp As String = lblSecMemberProperty.Text
Dim PrimProp As String = cobPrimaryMember.SelectedItem.ToString
Dim booSamePropertyForPrimAndSec As Boolean = False
Dim booMessageSamePropDisplayed As Boolean = False
If SecProp = PrimProp Then booSamePropertyForPrimAndSec = True
ret = SapModel.PointElm.GetNameList(NumberNames, MyName)
Dim boook(1) As Boolean
Dim Value(5) As Boolean
For Each joint In MyName
boook(0) = False
boook(1) = False
Dim SamePropArrayLength As Integer = 0
ret = SapModel.PointElm.GetConnectivity(joint, NumberItems, ObjectType, ObjectName, PointNumber)
Dim secIndex() As Integer
Dim secIndexLength As Integer = 0
For u = 0 To NumberItems - 1
If ObjectType(u) = 2 Then
ret = SapModel.LineElm.GetProperty(ObjectName(u), PropName, ObjType, Var, sVarRelStartLoc, sVarTotalLength)
If booBasePlateJoint = False Then
If PropName = PrimProp Then boook(0) = True
Else
ret = SapModel.PointElm.GetRestraint(joint, Value)
If ret = 0 Then
For yy = 0 To 5
If Value(yy) = True Then
boook(0) = True
End If
Next
End If
End If
If PropName = SecProp Then
boook(1) = True
ReDim Preserve secIndex(secIndexLength)
secIndex(secIndexLength) = u
secIndexLength += 1
End If
End If
Next
Dim booGoMakeSelection As Boolean = False
If boook(0) = True And boook(1) = True Then
If booSamePropertyForPrimAndSec = False Then
booGoMakeSelection = True
Else
If booSpliceJoint Then
If secIndexLength = 2 Then
booGoMakeSelection = True
End If
Else
If secIndexLength >= 3 Then
booGoMakeSelection = True
End If
End If
End If
If booGoMakeSelection Then
If booSamePropertyForPrimAndSec And booSpliceJoint = False Then
If booMessageSamePropDisplayed = False Then
MsgBox("primary and secondary members have the same property " & PropName & _
" so the macro cannot understand which members are secondary and which primary." & _
" Right now all members have been selected therefore manually unselect primary members")
booMessageSamePropDisplayed = True
End If
End If
For i = 0 To secIndexLength - 1
ret = SapModel.PointObj.SetSelected(joint.ToString, True)
Dim objnameroot As String = ObjectName(secIndex(i))
Try
objnameroot = objnameroot.Substring(0, objnameroot.LastIndexOf("-"))
Catch ex As Exception
End Try
ret = SapModel.FrameObj.SetSelected(objnameroot, True)
Next
End If
End If
Next
ret = SapModel.View.RefreshView
End Sub
Dim scsModuleGeneric2 As mySCS.frmFP1 'all modules inherit from type frmFP1 therefore this can point out to any form
Private Sub btnPath_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles btnPath.Click
OpenFileDialog1.Title = "choose SCS file to open"
'OpenFileDialog1.Filter = strDocDialog
If OpenFileDialog1.ShowDialog() = Windows.Forms.DialogResult.Cancel Then Exit Sub 'gaetano
Dim sFilePathOpen As String
sFilePathOpen = OpenFileDialog1.FileName
If sFilePathOpen = Nothing Then Exit Sub
If System.IO.File.Exists(sFilePathOpen) = False Then Exit Sub
Dim exteN As String = sFilePathOpen.Substring(sFilePathOpen.Length - 3, 3)
Select Case exteN
Case Is = "fp1", "fp2", "me0", "cb8", "br9", "em3", "sp4", "ds1", "qs5", "qs6", "we1", "ap7", "xl1", "xl2"
Dim pos As Integer = sFilePathOpen.LastIndexOf("\")
txbSCSfileName.Text = sFilePathOpen.Substring(pos + 1, sFilePathOpen.Length - (pos + 1))
WorkingPath = sFilePathOpen.Substring(0, pos + 1)
Case Else
MsgBox("this is not a valid SCS file")
End Select
End Sub
Private Sub txbSapFileName_TextChanged(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles txbSapFileName.TextChanged
End Sub
End Class
Public Class FrameElement
Private m_label As String
Public Property Label() As String
Get
Return m_label
End Get
Set(ByVal value As String)
m_label = value
End Set
End Property
Public Sub New()
End Sub
Private m_coordpoint1(2) As Double
Private m_coordpoint2(2) As Double
Public Property CoordPoint1() As Double()
Get
Return m_coordpoint1
End Get
Set(ByVal value As Double())
m_coordpoint1 = value
End Set
End Property
Public Property CoordPoint2() As Double()
Get
Return m_coordpoint2
End Get
Set(ByVal value As Double())
m_coordpoint2 = value
End Set
End Property
Public Sub New(ByVal label As String, ByVal coord1() As Double, ByVal coord2() As Double)
m_label = label
If coord1.Count = 3 Then m_coordpoint1 = coord1
If coord2.Count = 3 Then m_coordpoint2 = coord2
End Sub
Private m_vector(2) As Double
Private m_vectornormalized(2) As Double
Private m_length As Double
Public ReadOnly Property VectorNormalized() As Double()
Get
For k = 0 To 2
m_vector(k) = m_coordpoint2(k) - m_coordpoint1(k)
Next
m_length = Sqrt(m_vector(0) ^ 2 + m_vector(1) ^ 2 + m_vector(2) ^ 2)
For k = 0 To 2
m_vectornormalized(k) = m_vector(k) / m_length
Next
Return m_vectornormalized
End Get
End Property
Public ReadOnly Property MainDirection_0x_1y_2z_3xyPlane_4xzplane_5yzplane_6xyz() As Integer
Get
Dim refVal As Double = 0.95 'this means an angle approx between 72° and 90°
Dim refVal2 As Double = 0.05
If Abs(VectorNormalized(0)) >= refVal Then
Return 0
ElseIf Abs(m_vectornormalized(1)) >= refVal Then
Return 1
ElseIf Abs(m_vectornormalized(2)) >= refVal Then
Return 2
ElseIf Abs(m_vectornormalized(2)) <= refVal2 Then
Return 3
ElseIf Abs(m_vectornormalized(1)) <= refVal2 Then
Return 4
ElseIf Abs(m_vectornormalized(0)) <= refVal2 Then
Return 5
Else
Return 6
End If
End Get
End Property
End Class
Module CommonMethods
Public Function AngleBetweenFrameElements(ByVal Frame1 As FrameElement, ByVal Frame2 As FrameElement) As Double 'angle in radians between frame elements
Dim angleinRadians As Double = Acos(Frame1.VectorNormalized(0) * Frame2.VectorNormalized(0) + Frame1.VectorNormalized(1) * Frame2.VectorNormalized(1) + Frame1.VectorNormalized(2) * Frame2.VectorNormalized(2))
If angleinRadians >= PI Then angleinRadians += -PI
Return angleinRadians
End Function
End Module
Public Class Sap2000JointData
Private m_primarymemberisacolumn As Boolean = False
Private m_frameelements() As FrameElement
Private m_objname() As String
Private m_pointnumber() As Integer
Private m_propertyname() As String
Private m_propertyrefvalue() As Double
Private m_propertyrefvaluesorted() As Double
Private m_objectcount As Integer
Private m_objnameroot() As String
Private m_objnode() As Integer '0 first joint, 1 second joint
Private m_objnamesecondpart() As String
Private m_baseplatejoint As Boolean = False
Private m_bracejoint As Boolean = False
Public Property BraceJoint() As Boolean
Get
Return m_bracejoint
End Get
Set(ByVal value As Boolean)
m_bracejoint = value
End Set
End Property
Public Property BasePlateJoint() As Boolean
Get
Return m_baseplatejoint
End Get
Set(ByVal value As Boolean)
m_baseplatejoint = value
End Set
End Property
Public Property ObjNode() As Integer()
Get
Return m_objnode
End Get
Set(ByVal value() As Integer)
m_objnode = value
End Set
End Property
Public Property PrimaryMemberIsaColumn() As Boolean
Get
Return m_primarymemberisacolumn
End Get
Set(ByVal value As Boolean)
m_primarymemberisacolumn = value
End Set
End Property
Public Property FrameElements() As FrameElement()
Get
Return m_frameelements
End Get
Set(ByVal value() As FrameElement)
m_frameelements = value
End Set
End Property
Public ReadOnly Property ObjectCount() As Integer
Get
Return m_objectcount
End Get
End Property
Public Property ObjName() As String()
Get
Return m_objname
End Get
Set(ByVal value As String())
m_objname = value
End Set
End Property
Public Property PointNumber() As Integer()
Get
Return m_pointnumber
End Get
Set(ByVal value As Integer())
m_pointnumber = value
End Set
End Property
Public Property PropertyRefValue() As Double()
Get
Return m_propertyrefvalue
End Get
Set(ByVal value As Double())
m_propertyrefvalue = value
End Set
End Property
Public Property PropertyName() As String()
Get
Return m_propertyname
End Get
Set(ByVal value As String())
m_propertyname = value
End Set
End Property
Public Sub New(ByVal objcount As Integer)
m_objectcount = objcount
If m_objectcount = 0 Then
MsgBox("problem")
End If
ReDim m_pointnumber(m_objectcount - 1)
ReDim m_objname(m_objectcount - 1)
ReDim m_propertyname(m_objectcount - 1)
ReDim m_objnameroot(m_objectcount - 1)
ReDim m_objnode(m_objectcount - 1)
ReDim m_objnamesecondpart(m_objectcount - 1)
ReDim m_propertyrefvalue(m_objectcount - 1)
ReDim m_propertyrefvaluesorted(m_objectcount - 1)
End Sub
Private m_guessedprimarymember_name As String
Private m_guessedsecondarymember_name() As String
Public Property GuessedPrimaryMember_Name() As String
Get
Return m_guessedprimarymember_name
End Get
Set(ByVal value As String)
m_guessedprimarymember_name = value
End Set
End Property
Public Property GuessedSecondaryMember_Name() As String()
Get
Return m_guessedsecondarymember_name
End Get
Set(ByVal value() As String)
m_guessedsecondarymember_name = value
End Set
End Property
Private m_guessedprimarymember_property_OverWrite As Boolean = False
Public Property GuessedPrimaryMember_property_OverWrite() As Boolean
Get
Return m_guessedprimarymember_property_OverWrite
End Get
Set(ByVal value As Boolean)
m_guessedprimarymember_property_OverWrite = value
CheckIfCustomAssignedPrimaryMemberPropertyIsOkInThisJoint()
End Set
End Property
Private Sub CheckIfCustomAssignedPrimaryMemberPropertyIsOkInThisJoint()
If m_baseplatejoint = False Then
If m_guessedprimarymember_property_OverWrite Then
Dim booCheckIsOk = False
For j = 0 To m_objectcount - 1
If m_guessedprimarymember_property = m_propertyname(j) Then
m_guessedprimarymember_name = m_objname(j)
m_guessedprimarymember_index = j
booCheckIsOk = True
Exit For
End If
Next
If booCheckIsOk Then
m_jointisverifiedtogiveloads = True
Else
m_jointisverifiedtogiveloads = False
MsgBox("Joint " & m_label & " doesn't have any member connected with the primary member property " & m_guessedprimarymember_property & _
"therefore its load data will not be included in the export")
End If
End If
End If
End Sub
Private m_jointisverifiedtogiveloads As Boolean = False
Public ReadOnly Property JointIsVerifiedToGiveLoads() As Boolean 'this is false when the primary member property assigned can't be found in the joint
Get
Return m_jointisverifiedtogiveloads
End Get
End Property
Private m_guessedprimarymember_property As String
Private m_guessedsecondarymember_property As String
Public Property GuessedPrimaryMember_property() As String
Get
If m_guessedprimarymember_property_OverWrite = False Then m_guessedprimarymember_property = m_propertyname(GuessedPrimaryMember_index)
Return m_guessedprimarymember_property
End Get
Set(ByVal value As String)
m_guessedprimarymember_property = value
CheckIfCustomAssignedPrimaryMemberPropertyIsOkInThisJoint()
End Set
End Property
Public Property GuessedSecondaryMember_property() As String
Get
Return m_guessedsecondarymember_property
End Get
Set(ByVal value As String)
m_guessedsecondarymember_property = value
End Set
End Property
Private m_guessedprimarymember_index As String
Private m_guessedsecondarymember_index() As String
Public ReadOnly Property GuessedPrimaryMember_index() As String
Get
' m_guessedprimarymember_index = GetIndexByObjName(m_guessedprimarymember_name)
Return m_guessedprimarymember_index
End Get
'Set(ByVal value As String)
' m_guessedprimarymember_index = value
'End Set
End Property
Public ReadOnly Property GuessedSecondaryMember_index() As String()
Get
'For i = 0 To m_guessedsecondarymember_name.Count - 1
' m_guessedsecondarymember_index(i) = GetIndexByObjName(m_guessedsecondarymember_name(i))
'Next
Return m_guessedsecondarymember_index
End Get
'Set(ByVal value As String)
' m_guessedsecondarymember_index = value
'End Set
End Property
Private Function GetIndexByObjName(ByVal name As String) As Integer
For k = 0 To m_objectcount - 1
If m_objname(k) = name Then
Return k
End If
Next
Return Nothing
End Function
Public ReadOnly Property ObjectNameRoot() As String()
Get
Return m_objnameroot
End Get
End Property
Private m_label As String
Public Property Label() As String
Get
Return m_label
End Get
Set(ByVal value As String)
m_label = value
End Set
End Property
Private m_listofsecondarymember
Public Sub GetObjNameRoot(ByVal j As Integer)
m_objnameroot(j) = m_objname(j).Substring(0, m_objname(j).LastIndexOf("-"))
m_objnamesecondpart(j) = m_objname(j).Substring(m_objname(j).LastIndexOf("-") + 1, m_objname(j).Length - m_objname(j).LastIndexOf("-") - 1)
End Sub
Private m_SecMembersInThisJointCount As Integer = 0
Private m_PrimMembersInThisJointCount As Integer = 0
Public Sub GuessPrimaryMembersAndAssignSecMembers(ByVal SecMembers As String())
m_SecMembersInThisJointCount = 0
For j = 0 To m_objectcount - 1
'GetObjNameRoot(j) not needed since it has been called to assign values to FrameElements
For i = 0 To SecMembers.Count - 1
If m_objnameroot(j) = SecMembers(i) Then
ReDim Preserve m_guessedsecondarymember_name(m_SecMembersInThisJointCount)
ReDim Preserve m_guessedsecondarymember_index(m_SecMembersInThisJointCount)
m_guessedsecondarymember_name(m_SecMembersInThisJointCount) = m_objname(j)
m_guessedsecondarymember_index(m_SecMembersInThisJointCount) = j
m_guessedsecondarymember_property = m_propertyname(j) 'revision on 20141127
m_SecMembersInThisJointCount += 1
End If
Next
Next
If m_SecMembersInThisJointCount = 0 Then
MsgBox("no secondary member selected for joint " & m_label)
m_jointisverifiedtogiveloads = False
Else
m_PrimMembersInThisJointCount = 0
For j = 1 To m_objectcount - 1
For k = 0 To m_SecMembersInThisJointCount - 1
If j <> m_guessedsecondarymember_index(k) Then
Dim anG As Double = AngleBetweenFrameElements(m_frameelements(m_guessedsecondarymember_index(k)), m_frameelements(j))
Dim angDegrees As Double = anG / PI * 180
If Abs(90 - angDegrees) <= acceptedangleDeltafrom90 Then
m_guessedprimarymember_name = m_objname(j)
m_guessedprimarymember_index = j
m_jointisverifiedtogiveloads = True
End If
End If
Next
Next
End If
End Sub
Private Function acceptedangleDeltafrom90() As Double
If m_bracejoint Then
Return 75
Else
Return 15
End If
End Function
End Class
|
|
Please note the following, valid for all the examples:
- you need to be skilled with programming to make it work, we don't provide assistance for macros, only the API side if there are questions;
- you can use free sofware tools like Visual Studio Express to modify and compile it;
- the macro is just an example and can be modified and improved; some logic (like the maximum load and combinations among loads) can be modified too, as everything: we just give you an example and a set of tools then it's up to you to make it work the way you want it.
|
|
|
|
While a more complete version for importing and exporting joints from and to Tekla will be coming soon and it will be, as for Staad and Sap2000, a built in button inside SCS, a possible example of a macro for letting SCS and Tekla exchange files is below copied. Just if you can't wait.....
The macro is pretty basic since the SCS file to import/export is chosen programattically and only some SCS connection types can be exported. Again, it's just a simple example. It was developed with Visual Studio Express 2013 for Desktop in C#.
|
|
|
|
using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;
using mySCS;
// Tekla Structures Namespaces
using Tekla.Structures;
using Tekla.Structures.Model;
using Tekla.Structures.Geometry3d;
using Tekla.Structures.Model.UI;
using TSM = Tekla.Structures.Model;
using T3D = Tekla.Structures.Geometry3d;
using TSMUI = Tekla.Structures.Model.UI;
using TSO = Tekla.Structures.Model.Operations;
// Additional Namespace references
using System.IO;
using System.Collections;
using System.Diagnostics;
namespace SCSandTekla
{
public partial class TeklaImporExport : Form
{
mySCS.frmShapedStart SCSobj;
mySCS.frmFP1 SCSmod0;
TSM.Connection myConn;
TSM.Model myModel;
string FileName;
string k = "";
string k1 = "";
double w = 0.0;
int j = 0;
string Extn;
public TeklaImporExport()
{
InitializeComponent();
SCSobj = new mySCS.frmShapedStart();
SCSobj.ApplicationStart();
FileName = "yourpath/test1.xl1"; //write the path to your file here
SCSobj.OpenFileAndAssignGenericModuleObject(FileName, ref SCSmod0);
Extn = SCSmod0.Extension;
myModel = new TSM.Model();
myConn = new TSM.Connection();
}
private void btnToTekla_Click(object sender, EventArgs e)
{
string ConnName = "";
claDataPage_General.PlateWeldingtoPrimary k2;
k2 = SCSmod0.DataPage_General.PlateWeldingtoPrimarySelection;
switch (Extn)
{
case ".fp1":
{
ConnName = "Fin Plate fp1 SCS";
myConn.Number = 103;
break;
}
case ".fp2":
{
ConnName = "Fin plate fp2 SCS";
if (k2 == claDataPage_General.PlateWeldingtoPrimary.FirstOption)
{
myConn.Number = 146;
}
if (k2== claDataPage_General.PlateWeldingtoPrimary.SecondOption)
{
myConn.Number = 149;
}
if (k2== claDataPage_General.PlateWeldingtoPrimary.ThirdOption)
{
myConn.Number = 185;
}
break;
}
case ".xl1":
{
ConnName = "Flexible End Plate xl1 SCS";
myConn.Number = 29;
break;
}
case ".xl2":
{
ConnName = "Flexible End Plate xl2 SCS";
myConn.Number = 101;
break;
}
case ".sp4":
{
ConnName = "Splice sp4 SCS";
myConn.Number = 132;
break;
}
}
myConn.Name = ConnName;
myConn.UpVector = new Tekla.Structures.Geometry3d.Vector(0, 0, 1000);
myConn.PositionType = Tekla.Structures.PositionTypeEnum.COLLISION_PLANE;
// TODO : check units (mm, inches)
// this.Hide();
// Dim myMainPart As TSM.Part = TSM.UI.Picker.PickObjectEnum.PICK_ONE_OBJECT
// TSM.UI.PickerickObject(Picker.PickObjectEnum.PICK_ONE_PART, "PickColumn")
MessageBox.Show("Select Primary and Secondary Sections in TS 20.0");
// SelectedBeam = PartPicker.PickObject(Picker.PickObjectEnum.PICK_ONE_PART, "Pick Beam")
Tekla.Structures.Model.UI.Picker myPicker = new Tekla.Structures.Model.UI.Picker();
Tekla.Structures.Model.ModelObject myTSObj = default(Tekla.Structures.Model.ModelObject);
// Selecting Primary
myTSObj = myPicker.PickObject(Tekla.Structures.Model.UI.Picker.PickObjectEnum.PICK_ONE_OBJECT, "Select Primary Part");
TSM.Part myMainPart = null;
if (myTSObj is Tekla.Structures.Model.Part)
{
myMainPart = myTSObj as TSM.Part;
}
else
{
MessageBox.Show("Select a Part");
myTSObj = myPicker.PickObject(Tekla.Structures.Model.UI.Picker.PickObjectEnum.PICK_ONE_OBJECT, "Select Primary Section");
}
// Selecting Secondary
myTSObj = myPicker.PickObject(Tekla.Structures.Model.UI.Picker.PickObjectEnum.PICK_ONE_OBJECT, "Select Secondary Part");
TSM.Part mySecPart = null;
if (myTSObj is Tekla.Structures.Model.Part)
{
mySecPart = myTSObj as TSM.Part;
}
else
{
MessageBox.Show("Select a Part");
myTSObj = myPicker.PickObject(Tekla.Structures.Model.UI.Picker.PickObjectEnum.PICK_ONE_OBJECT, "Select a Secondary Part");
}
// MsgBox(myMainPart.Profile.ProfileString & " x " & mySecPart.Profile.ProfileString)
this.Show();
myConn.SetPrimaryObject(myMainPart);
myConn.SetSecondaryObject(mySecPart);
// CC Data............................................................................................................................
// myConn.Code = myConn.Number + "-001";
// Bolt Data..........................................................................................................................
double myBoltDia = Convert.ToDouble(SCSmod0.DataPage_PlateandBolts.BoltDiameter);
double myBoltHole = Convert.ToDouble(SCSmod0.DataPage_PlateandBolts.HoleDiameter);
// Not able to read Bolt Mat
string myBoltGrade = "UNI5737-8.8"; //change this as required and available
double myFirstBoltPosition = Convert.ToDouble(SCSmod0.DataPage_Geometry.aVertBeamTop);
double myEndDist_Plate = Convert.ToDouble(SCSmod0.DataPage_Geometry.aVerticalBoltPlateTop);
double myDist_Beam_Plate = myFirstBoltPosition-myEndDist_Plate;
double myEdgeDist_Beam = 0.0; // Convert.ToDouble(SCSmod0.DataPage_Geometry.aHorizBeam);
double myEdgeDist_Plate = 0.0; // Convert.ToDouble(SCSmod0.DataPage_Geometry.aHrizontalPlate);
double myHor_Gauge = Convert.ToDouble(SCSmod0.DataPage_Geometry.BoltHorizontalGauge);
// Plate Attributes...................................................................................................................
double myPlateThk = Convert.ToDouble(SCSmod0.DataPage_Geometry.PlateThickness);
double myPlateWidth = Convert.ToDouble(SCSmod0.DataPage_Geometry.PlateWidth);
double myPlateDepth = Convert.ToDouble(SCSmod0.DataPage_Geometry.PlateDepth);
double myDist_Beam_Column = 0.0;
double myColumnStiffThk = 0.0; // Convert.ToDouble(SCSmod0.DataPage_WeldNotchStiffeners.PrimaryMemberStiffenerThickness);
double myBeamNotchLength = 0.0;
double myBeamNotchDepth = 0.0;
double myBeamNotchRadius = 0.0;
int myBoltColumns = Convert.ToInt16(SCSmod0.DataPage_Geometry.BoltColumns); ;
string myPlateMaterial = SCSmod0.DataPage_PlateandBolts.PlateMaterial;
myConn.SetAttribute("diameter", myBoltDia);
myConn.SetAttribute("tolerance", myBoltHole - myBoltDia);
myConn.SetAttribute("screwdin", myBoltGrade);
k = SCSmod0.DataPage_Geometry.BoltRows;
OperatewithTekla(0, 2, "nb", ref k, ref myConn);
k = SCSmod0.DataPage_Geometry.BoltVerticalPitch;
OperatewithTekla(0, 0, "lbd", ref k, ref myConn);
if (myBoltColumns > 1)
{
k = SCSmod0.DataPage_Geometry.BoltHorizontalGauge;
}
else
{
k = "-2147483648";
}
OperatewithTekla(0, 0, "lwd", ref k, ref myConn);
myConn.SetAttribute("rb1", myEndDist_Plate);
myConn.SetAttribute("nw", myBoltColumns);
// Plate Parameters
myConn.SetAttribute("tpl1", myPlateThk);
myConn.SetAttribute("hpl1", myPlateDepth);
// todo plate material
// todo washers
// todo slots
// todo welds: throat or leg, [mm] or [inch]
switch (Extn)
{
case ".fp1":
{
myDist_Beam_Column = Convert.ToDouble(SCSmod0.DataPage_Geometry.BeamClearance);
myEdgeDist_Beam = Convert.ToDouble(SCSmod0.DataPage_Geometry.aHorizBeam);
myEdgeDist_Plate = Convert.ToDouble(SCSmod0.DataPage_Geometry.aHrizontalPlate);
myConn.SetAttribute("e1", myDist_Beam_Plate);
myConn.SetAttribute("lba", myFirstBoltPosition);
myConn.SetAttribute("dv", myDist_Beam_Column);
w = myDist_Beam_Column + myEdgeDist_Beam;
myConn.SetAttribute("rw1", w);
myConn.SetAttribute("rw2", myEdgeDist_Plate);
myConn.SetAttribute("lbtyp", 1);
myConn.SetAttribute("bpl1", myPlateWidth);
myConn.SetAttribute("w1_type", 10);
k = SCSmod0.DataPage_WeldNotchStiffeners.WeldWeb_Thickness;
OperatewithTekla(0, 2, "w1_size", ref k, ref myConn);
myConn.SetAttribute("w1_type2", 0);
myConn.SetAttribute("w1_size2", -2147483648);
claDataPage_WeldNotchesandStiffeners.WeldTypeofWebWeld k3;
k3 = SCSmod0.DataPage_WeldNotchStiffeners.WeldTypeofWebWeldSelection;
if (k3 == claDataPage_WeldNotchesandStiffeners.WeldTypeofWebWeld.SingleFillet)
{
}
if (k3 == claDataPage_WeldNotchesandStiffeners.WeldTypeofWebWeld.DoubleFillet)
{
myConn.SetAttribute("w1_type2", 10);
k1 = SCSmod0.DataPage_WeldNotchStiffeners.WeldWeb_Thickness;
OperatewithTekla(0, 2, "w1_size2", ref k1, ref myConn);
}
if (k3 == claDataPage_WeldNotchesandStiffeners.WeldTypeofWebWeld.CompletePenetration)
{
myConn.SetAttribute("w1_type", 4);
myConn.SetAttribute("w1_size", 0);
}
break;
}
case ".fp2":
{
myEdgeDist_Plate = Convert.ToDouble(SCSmod0.DataPage_Geometry.aHrizontalPlate);
myConn.SetAttribute("rw1", myEdgeDist_Plate);
myConn.SetAttribute("lbtyp", 1);
myEdgeDist_Beam = Convert.ToDouble(SCSmod0.DataPage_Geometry.aHorizBeam);
myConn.SetAttribute("lwa", myEdgeDist_Beam);
myConn.SetAttribute("lba", myFirstBoltPosition);
myConn.SetAttribute("btab3", 2);
myConn.SetAttribute("bpl1", myPlateWidth);
claDataPage_WeldNotchesandStiffeners.Notch k4;
k4 = SCSmod0.DataPage_WeldNotchStiffeners.NotchSelection;
if (k2 == claDataPage_General.PlateWeldingtoPrimary.FirstOption) // welded only on web
{
myDist_Beam_Column = Convert.ToDouble(SCSmod0.DataPage_Geometry.BeamClearance);
myConn.SetAttribute("dv", myDist_Beam_Column);
}
else // claDataPage_General.PlateWeldingtoPrimary.SecondOption | claDataPage_General.PlateWeldingtoPrimary.ThirdOption) // welded to top flange | full depth
{
myConn.SetAttribute("hpl1", -2147483648.0);
myConn.SetAttribute("rb2", myEndDist_Plate);
k = SCSmod0.DataPage_Geometry.BeamClearanceFlanges;
OperatewithTekla(0, 1, "dv", ref k, ref myConn);
if (k4 == claDataPage_WeldNotchesandStiffeners.Notch.TopNotch | k4 == claDataPage_WeldNotchesandStiffeners.Notch.TopandBottomNotch)
{
OperatewithTekla(0, 1, "skew", ref k, ref myConn);
}
else
{
myConn.SetAttribute("skew", 0.0);
}
myConn.SetAttribute("btab2", 2);
}
if (k2 == claDataPage_General.PlateWeldingtoPrimary.ThirdOption) // full depth only
{
//myConn.SetAttribute("edist3", -2147483648.0)
//myConn.SetAttribute("tol3", -2147483648.0)
myConn.SetAttribute("skew", 0.0);
}
myConn.SetAttribute("t_cope_length", 0.0);
myConn.SetAttribute("t_cope_depth", 0.0);
if (k4 != claDataPage_WeldNotchesandStiffeners.Notch.NoNotch)
{
myBeamNotchLength = Convert.ToDouble(SCSmod0.DataPage_WeldNotchStiffeners.NotchLength);
myBeamNotchDepth = Convert.ToDouble(SCSmod0.DataPage_WeldNotchStiffeners.NotchDepth);
myBeamNotchRadius = Convert.ToDouble(SCSmod0.DataPage_WeldNotchStiffeners.NotchRadius);
}
else // no notch case
{
myConn.SetAttribute("cope_fitting_type2", -2147483648);
myConn.SetAttribute("t_cut_width2", -2147483648.0);
myConn.SetAttribute("etab4", -2147483648);
myConn.SetAttribute("t_cut_length", -2147483648.0);
myConn.SetAttribute("b_cope_length", -2147483648.0);
myConn.SetAttribute("t_cut_width2", -2147483648.0);
myConn.SetAttribute("etab3", -2147483648);
myConn.SetAttribute("b_cut_length", -2147483648.0);
myConn.SetAttribute("b_cope_depth", -2147483648.0);
}
if (k4 == claDataPage_WeldNotchesandStiffeners.Notch.TopNotch | k4 == claDataPage_WeldNotchesandStiffeners.Notch.TopandBottomNotch)
{
myConn.SetAttribute("etab4", 1);
myConn.SetAttribute("cope_fitting_type2", 2);
myConn.SetAttribute("t_cut_length", myBeamNotchLength);
myConn.SetAttribute("b_cope_length", myBeamNotchDepth);
myConn.SetAttribute("t_cut_width2", myBeamNotchRadius);
w = myFirstBoltPosition + myBeamNotchDepth;
myConn.SetAttribute("lba", w);
}
if (k4 == claDataPage_WeldNotchesandStiffeners.Notch.BottomNotch | k4 == claDataPage_WeldNotchesandStiffeners.Notch.TopandBottomNotch)
{
myConn.SetAttribute("etab3", 1);
myConn.SetAttribute("cope_fitting_type2", 2);
myConn.SetAttribute("b_cut_length", myBeamNotchLength);
myConn.SetAttribute("b_cope_depth", myBeamNotchDepth);
myConn.SetAttribute("t_cut_width2", myBeamNotchRadius);
}
if (SCSmod0.DataPage_WeldNotchStiffeners.CheckBoxOneStiffnerPrimaryMember == true)
{
myConn.SetAttribute("atab3", 0);
myColumnStiffThk = Convert.ToDouble(SCSmod0.DataPage_WeldNotchStiffeners.PrimaryMemberStiffenerThickness);
myConn.SetAttribute("tj3", myColumnStiffThk);
myConn.SetAttribute("tol2", 1.0); // for a default value, use: ("tol2", -2147483648.0);
}
else
{
myConn.SetAttribute("atab3",3);
myConn.SetAttribute("tol2", -2147483648.0);
}
break;
}
case ".xl1":
{
myConn.SetAttribute("e1", myDist_Beam_Plate);
myConn.SetAttribute("lba", myFirstBoltPosition);
w = (Convert.ToDouble(SCSmod0.DataPage_Geometry.PlateWidth) - Convert.ToDouble(SCSmod0.DataPage_Geometry.BoltHorizontalGauge))/2;
myConn.SetAttribute("rw1", w);
myConn.SetAttribute("rw2", w);
k = "2"; // reference for bolts in Tekla: 1 left, 2 middle, 3 right;
OperatewithTekla(0, 2, "lwtyp", ref k, ref myConn);
k = "0";
OperatewithTekla(0, 1, "lwa", ref k, ref myConn); // hor. distance between plate and reference for bolts
k = "-2147483648";
OperatewithTekla(0, 1, "dv", ref k, ref myConn); // space between end plate and column
myConn.SetAttribute("bpl1", myPlateWidth);
// OperatewithTekla(0, 1, "rb2", ref k, ref myConn);
myConn.SetAttribute("w1_type", 10);
myConn.SetAttribute("w1_type2", 10);
myConn.SetAttribute("w2_type", 10);
myConn.SetAttribute("w2_type2", 10);
myConn.SetAttribute("w3_type", 10);
myConn.SetAttribute("w3_type2", 10);
// todo a o z, mm o inch, symbols according to standard
k = SCSmod0.DataPage_WeldNotchStiffeners.WeldFlange_Thickness;
OperatewithTekla(0, 2, "w1_size", ref k, ref myConn);
OperatewithTekla(0, 2, "w1_size2", ref k, ref myConn);
OperatewithTekla(0, 2, "w2_size", ref k, ref myConn);
OperatewithTekla(0, 2, "w2_size2", ref k, ref myConn);
k = SCSmod0.DataPage_WeldNotchStiffeners.WeldWeb_Thickness;
OperatewithTekla(0, 2, "w3_size", ref k, ref myConn);
OperatewithTekla(0, 2, "w3_size2", ref k, ref myConn);
claDataPage_WeldNotchesandStiffeners.WeldTypeofFlangeWeld k5;
k5 = SCSmod0.DataPage_WeldNotchStiffeners.WeldTypeofFlangeWeldSelection;
if (k5 == claDataPage_WeldNotchesandStiffeners.WeldTypeofFlangeWeld.SingleFillet)
{
myConn.SetAttribute("w1_type", 0);
myConn.SetAttribute("w1_size", -2147483648);
myConn.SetAttribute("w2_type", 0);
myConn.SetAttribute("w2_size", -2147483648);
}
if (k5 == claDataPage_WeldNotchesandStiffeners.WeldTypeofFlangeWeld.CompletePenetration)
{
myConn.SetAttribute("w1_type", 4);
myConn.SetAttribute("w1_type2", 0);
myConn.SetAttribute("w1_size", -2147483648);
myConn.SetAttribute("w1_size2", -2147483648);
myConn.SetAttribute("w2_type2", 4);
myConn.SetAttribute("w2_type", 0);
myConn.SetAttribute("w2_size2", -2147483648);
myConn.SetAttribute("w2_size", -2147483648);
}
claDataPage_WeldNotchesandStiffeners.WeldTypeofWebWeld k6;
k6 = SCSmod0.DataPage_WeldNotchStiffeners.WeldTypeofWebWeldSelection;
if (k6 == claDataPage_WeldNotchesandStiffeners.WeldTypeofWebWeld.CompletePenetration)
{
myConn.SetAttribute("w3_type", 4);
myConn.SetAttribute("w3_type2", 0);
myConn.SetAttribute("w3_size", -2147483648);
myConn.SetAttribute("w3_size2", -2147483648);
}
break;
}
case ".xl2":
{
myConn.SetAttribute("e1", myDist_Beam_Plate);
w = (Convert.ToDouble(SCSmod0.DataPage_Geometry.PlateWidth) - Convert.ToDouble(SCSmod0.DataPage_Geometry.BoltHorizontalGauge))/2;
myConn.SetAttribute("rw1", w);
myConn.SetAttribute("rw2", w);
k = "2";
OperatewithTekla(0, 2, "lwtyp", ref k, ref myConn); // reference for bolts in Tekla: 1 left, 2 middle, 3 right;
k = "0";
OperatewithTekla(0, 1, "lwa", ref k, ref myConn); // hor. distance between plate and reference for bolts
k = "-2147483648";
OperatewithTekla(0, 1, "dv", ref k, ref myConn); // space between end plate and column
claDataPage_WeldNotchesandStiffeners.Notch k7;
k7 = SCSmod0.DataPage_WeldNotchStiffeners.NotchSelection;
if (k7 != claDataPage_WeldNotchesandStiffeners.Notch.NoNotch)
{
myBeamNotchLength = Convert.ToDouble(SCSmod0.DataPage_WeldNotchStiffeners.NotchLength);
myBeamNotchDepth = Convert.ToDouble(SCSmod0.DataPage_WeldNotchStiffeners.NotchDepth);
myBeamNotchRadius = Convert.ToDouble(SCSmod0.DataPage_WeldNotchStiffeners.NotchRadius);
myConn.SetAttribute("cut2", 0);
}
if (k7 == claDataPage_WeldNotchesandStiffeners.Notch.TopNotch | k7 == claDataPage_WeldNotchesandStiffeners.Notch.TopandBottomNotch)
{
myConn.SetAttribute("bdist1", myBeamNotchDepth);
myConn.SetAttribute("adist1", myBeamNotchLength);
myConn.SetAttribute("epr1", 1);
w = myFirstBoltPosition + myBeamNotchDepth;
myConn.SetAttribute("lba", w); // overwrite for .xl2 case
}
if (k7 == claDataPage_WeldNotchesandStiffeners.Notch.BottomNotch | k7 == claDataPage_WeldNotchesandStiffeners.Notch.TopandBottomNotch)
{
myConn.SetAttribute("bdist2", myBeamNotchDepth);
myConn.SetAttribute("adist2", myBeamNotchLength);
myConn.SetAttribute("epr2", 1);
}
break;
}
case ".sp4":
{
k = SCSmod0.DataPage_Geometry.BeamClearance;
OperatewithTekla(0, 2, "dv", ref k, ref myConn);
// flange bolts parameters
k = SCSmod0.DataPage_Geometry.BoltColumns;
OperatewithTekla(0, 2, "nb", ref k, ref myConn);
k = SCSmod0.DataPage_Geometry.BoltHorizontalGauge;
OperatewithTekla(0, 0, "lbd", ref k, ref myConn);
k = SCSmod0.DataPage_Geometry.aHrizontalPlate;
OperatewithTekla(0, 1, "rb1", ref k, ref myConn);
k = SCSmod0.DataPage_Geometry.aHorizBeam;
OperatewithTekla(0, 1, "lba", ref k, ref myConn);
k = Convert.ToString(2 * Convert.ToDouble(SCSmod0.DataPage_Geometry.BoltRows));
OperatewithTekla(0, 2, "nw", ref k, ref myConn);
k = SCSmod0.DataPage_Geometry.PlateDepth;
k= Convert.ToString(Convert.ToDouble(k)-2*Convert.ToDouble(SCSmod0.DataPage_Geometry.aVerticalBoltPlateTop));
OperatewithTekla(0, 0, "lwd", ref k, ref myConn);
k = SCSmod0.DataPage_Geometry.aVerticalBoltPlateTop;
OperatewithTekla(0, 1, "rw1", ref k, ref myConn);
// web bolts parameters
k = SCSmod0.DataPage_PlateandBolts.BoltDiameterBoltGroup2;
OperatewithTekla(0,2, "diameter2", ref k, ref myConn);
k1 = SCSmod0.DataPage_PlateandBolts.HoleDiamBoltGroup2;
k1 = Convert.ToString(Convert.ToDouble(k1) - Convert.ToDouble(k));
OperatewithTekla(0, 2, "tolerance2", ref k1, ref myConn);
myConn.SetAttribute("screwdin2", myBoltGrade); // so, it's the same of flange bolts
k = SCSmod0.DataPage_Geometry.BoltColumnsBoltGroup2;
OperatewithTekla(0, 2, "nb2", ref k, ref myConn);
k = SCSmod0.DataPage_Geometry.BoltHorizontalGaugeBoltGroup2;
OperatewithTekla(0, 0, "lbd2", ref k, ref myConn);
k = SCSmod0.DataPage_Geometry.aHorizontalPlateBoltGroup2;
OperatewithTekla(0, 2, "rb21", ref k, ref myConn);
k = SCSmod0.DataPage_Geometry.BoltVerticalPitchBoltGroup2;
OperatewithTekla(0, 0, "lwd2", ref k, ref myConn);
k = SCSmod0.DataPage_Geometry.BoltRowsBoltGroup2;
OperatewithTekla(0, 2, "nw2", ref k, ref myConn);
k = SCSmod0.DataPage_Geometry.aVerticalPlateTopBoltGroup2;
OperatewithTekla(0, 1, "rw21", ref k, ref myConn);
k = SCSmod0.DataPage_Geometry.aHorintalBeamBoltGroup2;
OperatewithTekla(0, 1, "lba2", ref k, ref myConn);
k = "0";
OperatewithTekla(0, 2, "cut0", ref k, ref myConn);
OperatewithTekla(0, 2, "cut2", ref k, ref myConn);
OperatewithTekla(0, 2, "btab1", ref k, ref myConn);
OperatewithTekla(0, 2, "btab2", ref k, ref myConn);
k = "2147483648";
OperatewithTekla(0, 2, "atab2", ref k, ref myConn);
OperatewithTekla(0, 2, "stagger_type", ref k, ref myConn);
OperatewithTekla(0, 1, "stagger_type2", ref k, ref myConn);
OperatewithTekla(0, 1, "ctab4", ref k, ref myConn);
// plate parameters
k = "1";
OperatewithTekla(0, 2, "typ", ref k, ref myConn);
claDataPage_General.PlateWeldingtoPrimary k8;
k8 = SCSmod0.DataPage_General.PlateWeldingtoPrimarySelection;
if (k8 != claDataPage_General.PlateWeldingtoPrimary.ThirdOption)
{
k = SCSmod0.DataPage_Geometry.PlateThicknessBoltGroup2;
OperatewithTekla(0, 1, "tpl1", ref k, ref myConn);
k = SCSmod0.DataPage_Geometry.PlateDepthBoltGroup2;
OperatewithTekla(0, 1, "bpl1", ref k, ref myConn);
k = SCSmod0.DataPage_Geometry.PlateWidthBoltGroup2;
OperatewithTekla(0, 1, "hpl1", ref k, ref myConn);
}
if (k8 != claDataPage_General.PlateWeldingtoPrimary.SecondOption)
{
k = SCSmod0.DataPage_Geometry.PlateThickness;
OperatewithTekla(0, 1, "tpl2", ref k, ref myConn);
k = SCSmod0.DataPage_Geometry.PlateDepth;
OperatewithTekla(0, 1, "bpl2", ref k, ref myConn);
k = SCSmod0.DataPage_Geometry.PlateWidth;
OperatewithTekla(0, 1, "hpl2", ref k, ref myConn);
if (Convert.ToInt16(SCSmod0.DataPage_PlateandBolts.NumberOfFinPlates) == 2)
{
k = "4";
OperatewithTekla(0, 2, "typ", ref k, ref myConn);
k = SCSmod0.DataPage_Geometry.Splice_InternalFlangePlateThickness;
OperatewithTekla(0, 1, "tpl6", ref k, ref myConn);
k = SCSmod0.DataPage_Geometry.Splice_InternalFlangePlateDepth;
OperatewithTekla(0, 1, "bpl6", ref k, ref myConn);
k = SCSmod0.DataPage_Geometry.PlateWidth;
OperatewithTekla(0, 1, "hpl6", ref k, ref myConn);
}
}
if (k8 != claDataPage_General.PlateWeldingtoPrimary.FirstOption)
{
MessageBox.Show("this Tekla connection can only consider both flange and web connected");
}
break;
}
default:
{
break;
}
}
try
{
if (!myConn.Insert())
{
//MessageBox.Show("Connection Insert failed");
myConn.Modify();
}
myModel.CommitChanges();
}
catch (Exception ex)
{
MessageBox.Show(ex.ToString());
}
//this.Show();
}
private void btnToSCS_Click(object sender, EventArgs e)
{
MessageBox.Show("Select Connection in TS 20.0");
Tekla.Structures.Model.UI.Picker myPicker = new Tekla.Structures.Model.UI.Picker();
Tekla.Structures.Model.ModelObject myTSObj = default(Tekla.Structures.Model.ModelObject);
// Selecting connection
myTSObj = myPicker.PickObject(Tekla.Structures.Model.UI.Picker.PickObjectEnum.PICK_ONE_OBJECT, "Select Connection");
TSM.Connection myConnection = null;
if (myTSObj is Tekla.Structures.Model.Connection)
{
myConnection = myTSObj as TSM.Connection;
}
else
{
MessageBox.Show("Select a Connection");
myTSObj = myPicker.PickObject(Tekla.Structures.Model.UI.Picker.PickObjectEnum.PICK_ONE_OBJECT, "Select Connection");
if (myTSObj is Tekla.Structures.Model.Connection)
{
myConnection = myTSObj as TSM.Connection;
}
else
{
MessageBox.Show("You must select a Connection; operation is aborted");
return;
}
}
OperatewithTekla(1, 1, "diameter", ref k, ref myConnection);
k = "M" + k;
SCSmod0.DataPage_PlateandBolts.BoltSize = k;
SCSmod0.DataPage_Geometry.CheckBoxStandardBoltSpacing = false;
SCSmod0.DataPage_Geometry.CheckBoxSymmetricalVerticalBoltinPlate = false;
SCSmod0.DataPage_Geometry.CheckBoxVerticalSymmetricalBoltinSecondaryMember = false;
OperatewithTekla(1, 0, "lbd", ref k, ref myConnection);
SCSmod0.DataPage_Geometry.BoltVerticalPitch = k;
OperatewithTekla(1, 2, "nb", ref k, ref myConnection);
SCSmod0.DataPage_Geometry.BoltRows = k;
OperatewithTekla(1, 1, "rb1", ref k, ref myConnection);
SCSmod0.DataPage_Geometry.aVerticalBoltPlateTop = k;
OperatewithTekla(1, 1, "tpl1", ref k, ref myConnection);
SCSmod0.DataPage_Geometry.PlateThickness = k;
OperatewithTekla(1, 2, "nw", ref k, ref myConnection);
if (Convert.ToInt16(k) > 1)
{
OperatewithTekla(1, 0, "lwd", ref k1, ref myConnection);
SCSmod0.DataPage_Geometry.BoltHorizontalGauge = k1;
}
OperatewithTekla(1, 1, "lba", ref k, ref myConnection);
claDataPage_WeldNotchesandStiffeners.Notch k9;
k9= SCSmod0.DataPage_WeldNotchStiffeners.NotchSelection;
if (k9 == claDataPage_WeldNotchesandStiffeners.Notch.NoNotch)
{
SCSmod0.DataPage_Geometry.aVertBeamTop = k;
}
else
{
SCSmod0.DataPage_Geometry.aVertBeamTop = Convert.ToString(Convert.ToDouble(k) - Convert.ToDouble(SCSmod0.DataPage_WeldNotchStiffeners.NotchDepth));
}
switch (Extn)
{
case ".fp1":
{
OperatewithTekla(1, 1, "rw1", ref k, ref myConnection);
OperatewithTekla(1, 1, "dv", ref k1, ref myConnection);
k = Convert.ToString(Convert.ToDouble(k) - Convert.ToDouble(k1));
SCSmod0.DataPage_Geometry.aHorizBeam = k;
SCSmod0.DataPage_Geometry.BeamClearance = k1;
OperatewithTekla(1, 1, "rw2", ref k, ref myConnection);
SCSmod0.DataPage_Geometry.aHrizontalPlate = k;
OperatewithTekla(1, 2, "nb", ref k, ref myConnection);
OperatewithTekla(1, 0, "lbd", ref k1, ref myConnection);
w = ((Convert.ToDouble(k)-1) * Convert.ToDouble(k1));
OperatewithTekla(1, 1, "rb1", ref k, ref myConnection);
OperatewithTekla(1, 1, "hpl1", ref k1, ref myConnection);
w = Convert.ToDouble(k1)-Convert.ToDouble(k)-w;
SCSmod0.DataPage_Geometry.aVerticalPlateBottom = Convert.ToString(w);
break;
}
case ".fp2":
{
OperatewithTekla(1, 1, "lwa", ref k, ref myConnection);
SCSmod0.DataPage_Geometry.aHorizBeam = k;
OperatewithTekla(1, 1, "rw1", ref k, ref myConnection);
SCSmod0.DataPage_Geometry.aHrizontalPlate = k;
OperatewithTekla(1, 1, "dv", ref k, ref myConnection);
SCSmod0.DataPage_Geometry.BeamClearance = k;
OperatewithTekla(1, 1, "tj3", ref k, ref myConnection);
SCSmod0.DataPage_WeldNotchStiffeners.PrimaryMemberStiffenerThickness = k;
OperatewithTekla(1, 2, "nb", ref k, ref myConnection);
OperatewithTekla(1, 0, "lbd", ref k1, ref myConnection);
w = ((Convert.ToDouble(k) - 1) * Convert.ToDouble(k1));
OperatewithTekla(1, 1, "rb1", ref k, ref myConnection);
OperatewithTekla(1, 1, "hpl1", ref k1, ref myConnection);
w = Convert.ToDouble(k1) - Convert.ToDouble(k) - w;
SCSmod0.DataPage_Geometry.aVerticalPlateBottom = Convert.ToString(w);
break;
}
case ".xl1":
{
OperatewithTekla(1, 1, "hpl1", ref k, ref myConnection);
//TEMP SCSmod0.DataPage_Geometry.PlateDepth = k;
OperatewithTekla(1, 1, "bpl1", ref k, ref myConnection);
SCSmod0.DataPage_Geometry.PlateWidth = k;
break;
}
case ".xl2":
{
OperatewithTekla(1, 1, "rw1", ref k, ref myConnection);
OperatewithTekla(1, 1, "rw2", ref k1, ref myConnection);
if (k != k1) MessageBox.Show("SCS can't take a different value for rw1 and rw2, conservatively he takes the less of them");
w = Convert.ToDouble(k1);
if (Convert.ToDouble(k) < Convert.ToDouble(k1)) w = Convert.ToDouble(k);
OperatewithTekla(1, 0, "lwd", ref k, ref myConnection);
w = 2*w + Convert.ToDouble(k);
SCSmod0.DataPage_Geometry.PlateWidth = Convert.ToString(w);
OperatewithTekla(1, 2, "nb", ref k, ref myConnection);
OperatewithTekla(1, 0, "lbd", ref k1, ref myConnection);
w = ((Convert.ToDouble(k) - 1) * Convert.ToDouble(k1));
OperatewithTekla(1, 1, "rb1", ref k, ref myConnection);
OperatewithTekla(1, 1, "hpl1", ref k1, ref myConnection);
w = Convert.ToDouble(k1) - Convert.ToDouble(k) - w;
SCSmod0.DataPage_Geometry.aVerticalPlateBottom = Convert.ToString(w);
break;
}
case ".sp4":
{
OperatewithTekla(1, 2, "nw", ref k, ref myConnection);
OperatewithTekla(1, 0, "lwd", ref k1, ref myConnection);
k = Convert.ToString((Convert.ToDouble(k)-1) * Convert.ToDouble(k1));
OperatewithTekla(1, 1, "bpl2", ref k1, ref myConnection);
k = Convert.ToString((Convert.ToDouble(k1) - Convert.ToDouble(k))/2); // real rw1
OperatewithTekla(1, 1, "rw1", ref k1, ref myConnection); // fake rw1
if (k != k1) MessageBox.Show("please check flange bolt distances with 'b' dimension of flange plate");
SCSmod0.DataPage_Geometry.aVerticalBoltPlateTop = k;
// // todo: give "a y beam top" in SCS
OperatewithTekla(1, 2, "nw2", ref k, ref myConnection);
OperatewithTekla(1, 0, "lwd2", ref k1, ref myConnection);
k = Convert.ToString((Convert.ToDouble(k) - 1) * Convert.ToDouble(k1));
OperatewithTekla(1, 1, "bpl1", ref k1, ref myConnection); //
k = Convert.ToString((Convert.ToDouble(k1) - Convert.ToDouble(k)) / 2); // real rw21
OperatewithTekla(1, 1, "rw21", ref k1, ref myConnection); // fake rw21
if (k != k1) MessageBox.Show("please check web bolt distances with 'b' dimension of web plate");
SCSmod0.DataPage_Geometry.aVerticalPlateTopBoltGroup2 = k;
OperatewithTekla(1, 1, "lba2", ref k, ref myConnection);
SCSmod0.DataPage_Geometry.aHorintalBeamBoltGroup2 = k;
OperatewithTekla(1, 1, "lba", ref k, ref myConnection);
SCSmod0.DataPage_Geometry.aHorizBeam = k;
OperatewithTekla(1, 1, "rb21", ref k, ref myConnection);
SCSmod0.DataPage_Geometry.aHorizontalPlateBoltGroup2 = k;
OperatewithTekla(1, 1, "rb1", ref k, ref myConnection);
SCSmod0.DataPage_Geometry.aHrizontalPlate = k;
OperatewithTekla(1, 1, "rw1", ref k, ref myConnection);
SCSmod0.DataPage_Geometry.aVerticalBoltPlateTop = k;
OperatewithTekla(1, 1, "dv", ref k, ref myConnection);
SCSmod0.DataPage_Geometry.BeamClearance = k;
OperatewithTekla(1, 2, "nb", ref k, ref myConnection);
SCSmod0.DataPage_Geometry.BoltColumns = k;
OperatewithTekla(1, 2, "nb2", ref k, ref myConnection);
SCSmod0.DataPage_Geometry.BoltColumnsBoltGroup2 = k;
OperatewithTekla(1, 0, "lbd", ref k, ref myConnection);
SCSmod0.DataPage_Geometry.BoltHorizontalGauge = k;
OperatewithTekla(1, 0, "lbd2", ref k, ref myConnection);
SCSmod0.DataPage_Geometry.BoltHorizontalGaugeBoltGroup2 = k;
OperatewithTekla(1, 2, "nw", ref k, ref myConnection);
j = (Convert.ToInt16(k) / 2);
SCSmod0.DataPage_Geometry.BoltRows = Convert.ToString(j);
if (j > 1)
{
OperatewithTekla(1, 0, "lwd", ref k, ref myConnection);
SCSmod0.DataPage_Geometry.BoltVerticalPitch = k;
}
OperatewithTekla(1, 2, "nw2", ref k, ref myConnection);
SCSmod0.DataPage_Geometry.BoltRowsBoltGroup2 = k;
OperatewithTekla(1, 0, "lwd2", ref k, ref myConnection);
SCSmod0.DataPage_Geometry.BoltVerticalPitchBoltGroup2 = k;
OperatewithTekla(1, 1, "tpl1", ref k, ref myConnection); // web plate
SCSmod0.DataPage_Geometry.PlateThicknessBoltGroup2 = k;
OperatewithTekla(1, 1, "tpl2", ref k, ref myConnection); // flange plate
SCSmod0.DataPage_Geometry.PlateThickness = k;
OperatewithTekla(1, 2, "typ", ref k, ref myConnection);
if (k == "2" | k == "4")
{
k1 = "2";
SCSmod0.DataPage_PlateandBolts.NumberOfFinPlates = k1;
OperatewithTekla(1, 1, "tpl6", ref k1, ref myConnection); // internal flange plate
SCSmod0.DataPage_Geometry.Splice_InternalFlangePlateThickness = k1;
}
if (k == "0" |k == "1" | k == "3")
{
k1 = "1";
SCSmod0.DataPage_PlateandBolts.NumberOfFinPlates = k1;
}
break;
}
}
OperatewithTekla(1, 2, "nw", ref k, ref myConnection);
if (Extn == ".xl2" || Extn == ".xl1" || Extn == ".ap7" || Extn == ".em3")
{
if (k != "2" )
{
MessageBox.Show("SCS can only take 2 columns of bolts");
k = "2";
}
}
else
{
if ( Extn != ".sp4" ) SCSmod0.DataPage_Geometry.BoltColumns = k;
}
SCSmod0.OtherControls.Calculate();
}
private void OperatewithTekla(int fromSCStoTekla0_fromTeklatoSCS1, int String0Double1Integer2, string TeklaValue, ref string SCSvalue, ref TSM.Connection TeklaConn)
{
if (fromSCStoTekla0_fromTeklatoSCS1 == 0)
{
switch (String0Double1Integer2)
{
case 0:
string SCSValConv = ((string)(SCSvalue));
TeklaConn.SetAttribute(TeklaValue, SCSValConv);
break;
case 1:
double SCSValdou;
double.TryParse(SCSvalue, out SCSValdou);
TeklaConn.SetAttribute(TeklaValue, SCSValdou);
break;
case 2:
int SCSValInt;
int.TryParse(SCSvalue, out SCSValInt);
TeklaConn.SetAttribute(TeklaValue, SCSValInt);
break;
}
}
else
{
switch (String0Double1Integer2)
{
case 0:
string Temp = "";
TeklaConn.GetAttribute(TeklaValue, ref Temp);
SCSvalue = Temp;
break;
case 1:
double TempD = 0;
TeklaConn.GetAttribute(TeklaValue, ref TempD);
SCSvalue = Convert.ToString(TempD);
break;
case 2:
int TempInt = 0;
TeklaConn.GetAttribute(TeklaValue, ref TempInt);
SCSvalue = Convert.ToString(TempInt);
break;
}
}
}
}
}
|
|
|
|
The same considerations described above (please read) for Sap2000 applies.
Don't forget that current version of SCS already has a built in button to import
loads from Staad: download the demo and try it out.
|
|
|
|
Option Explicit On
Option Strict Off
'ADD SCS.exe (default location under ...Program Files (x86)\Steel Studio\SCS or equivalent) to your References. SCS.exe (no dll needed) is a .NET type reference. Set 'Copy Local' = True
'In some versions of Visual Studio it might be necessary to set x86 as a target reference to make SCS APIs work
'The macro was tested for Staad.Pro v8i selectseries 5 version in Visual Studio 2010 (framework 4)
Imports mySCS
Imports STAADLibBentley
Imports System.Math
Imports System.Runtime.InteropServices
Imports System.Runtime.InteropServices.ComTypes
Public Class StaadformMacro
Inherits System.Windows.Forms.Form
Private scsObj As mySCS.frmShapedStart
Private scsModuleGeneric As mySCS.frmFP1 'all modules inherit from type frmFP1 therefore this can point out to any form
Private WorkingPath As String = IO.Directory.GetParent(IO.Directory.GetParent(Application.StartupPath).FullName.ToString).FullName.ToString & "\Staad Models\"
Private booFirstTime As Boolean = True
Private booPrimaryMemberIsaColumn As Boolean = False
Private booBasePlateJoint As Boolean = False
Private booBraceJoint As Boolean = False
Private booSpliceJoint As Boolean = False
Private formYsize As Integer
Private tipHowToCreateNewSCSFile As String = "To create a new file use '*'." & vbCrLf & "Example: write *.em3 in the textbox and clicking the 'New' button a new em3 (moment connection) file will be launched."
Private strReLoadData As String = "remember that if you want to reload data of the selected 'similar' joints, you must re-click the button 'Load Data'"
Private strNotImportedLoads(4) As String
Public Sub New()
' This call is required by the Windows Form Designer.
InitializeComponent()
' Add any initialization after the InitializeComponent() call.
formYsize = Me.Size.Height
Me.Size = New Point(324, formYsize)
Me.TopMost = True
btnFormOnTop_Click(btnFormOnTop, New System.EventArgs) 'comment this if you want topmost to true because this command will switch the above command
strNotImportedLoads(0) = "Remember that SCS does NOT import loads for "
strNotImportedLoads(1) = " in the selected module: check that restraints in the model are correctly imposed or that values at joints are negligible"
strNotImportedLoads(2) = strNotImportedLoads(0) & "weak axis moment and torsion" & strNotImportedLoads(1)
strNotImportedLoads(3) = strNotImportedLoads(0) & "shear (strong and weak axis), torsion and minor moment axis" & strNotImportedLoads(1)
strNotImportedLoads(3) = strNotImportedLoads(0) & "torsion" & strNotImportedLoads(1)
ToolTip1.SetToolTip(txbSCSfileName, "choose file name and directory through the button on the right. To create a New (empty) file, just write * and the extension, example (fin plate for column): *.fp1.")
End Sub
Private Sub btnSCSopenFile1_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles btnSCSopenFile.Click
CheckifSCSIsOpen()
Dim fileName As String = txbSCSfileName.Text
'if the file name is just an asterisk, a new file is created
If (fileName.Length = 5 AndAlso fileName.Substring(0, 2) = "*.") Or (fileName.Length = 4 AndAlso fileName.Substring(0, 1) = ".") Then
'If CType(sender, Button).Name = btnSCSopenFile.Name Then
' MsgBox("a new file will be created")
'End If
Dim extensionString As String = fileName.Substring(fileName.Length - 3, 3)
scsObj.NewFileAndAssignGenericModuleObject(extensionString, scsModuleGeneric) 'open file directly then, adding the generic module reference will assign the new form to this object
Else
If CType(sender, Button).Name = btnSCSopenFile.Name Then
scsObj.OpenFileAndAssignGenericModuleObject(WorkingPath & txbSCSfileName.Text, scsModuleGeneric) 'open file directly then, adding the generic module reference will assign the new form to this object
Else
MsgBox(tipHowToCreateNewSCSFile)
End If
End If
End Sub
Private objOpenSTAAD1 As Object
Private objOpenSTAAD1viewer As STAADLibBentley.OpenSTAAD
Private ret As Long
Private JointData() As JointDataClass
Private secframeList() As String
Private jointList() As String
Private Function CheckIfSCSfileNameIsCompiled(ByVal booDisplayMsg As Boolean) As Boolean
Dim strWarn As String = "to operate the macro correctly, it's suggested to initially open the module (or at least write the name of the file extension) where you want to export the joints"
If txbSCSfileName.Text.Length < 4 Then
If booDisplayMsg Then MsgBox(strWarn)
Return False
Else
Dim SCSfileExtension As String = txbSCSfileName.Text.Substring(txbSCSfileName.Text.Length - 4, 4)
Select Case SCSfileExtension
Case Is = ".fp1", ".fp2", ".me0", ".cb8", ".br9", ".em3", ".sp4", ".ds1", ".qs5", ".qs6", ".we1", ".ap7", ".xl1", ".xl2"
Return True
Case Else
If booDisplayMsg Then MsgBox("Select valid extension")
Return False
End Select
End If
End Function
Private Sub CheckifStaadIsOpen()
Try
If objOpenSTAAD1 Is Nothing Then
Try
objOpenSTAAD1 = GetObject(, "StaadPro.OpenSTAAD")
Catch ex As Exception
MsgBox("Staad must be open, please start Staad")
Exit Sub
End Try
End If
Catch ex As Exception
MsgBox("Staad not available, macro will close")
Me.Close()
End Try
End Sub
Private Sub CheckifSCSIsOpen()
If scsObj Is Nothing Then
scsObj = New mySCS.frmShapedStart
scsObj.ApplicationStart()
End If
End Sub
Private Function IsBasePlateJoint() As Boolean
Dim boo As Boolean = False
Try
Dim SCSfileExtension As String = txbSCSfileName.Text.Substring(txbSCSfileName.Text.Length - 4, 4)
If SCSfileExtension.StartsWith(".") Then
Select Case SCSfileExtension
Case Is = ".cb8"
Return True
End Select
End If
Return boo
Catch ex As Exception
Return False
End Try
End Function
Private Function IsBraceJoint() As Boolean
Dim boo As Boolean = False
Try
Dim SCSfileExtension As String = txbSCSfileName.Text.Substring(txbSCSfileName.Text.Length - 4, 4)
If SCSfileExtension.StartsWith(".") Then
Select Case SCSfileExtension
Case Is = ".br9"
Return True
End Select
End If
Return boo
Catch ex As Exception
Return False
End Try
End Function
Private Function IsSpliceJoint() As Boolean
Dim boo As Boolean = False
Try
Dim SCSfileExtension As String = txbSCSfileName.Text.Substring(txbSCSfileName.Text.Length - 4, 4)
If SCSfileExtension.StartsWith(".") Then
Select Case SCSfileExtension
Case Is = ".sp4"
Return True
End Select
End If
Return boo
Catch ex As Exception
Return False
End Try
End Function
Private Function IsPrimaryMemeberAColumn() As Boolean
Dim boo As Boolean = False
Dim msgtxt As String = "Select SCS file (it's needed to determine primary members) then re-load data"
If txbSCSfileName.TextLength < 4 Then
MsgBox(msgtxt)
Else
Dim SCSfileExtension As String = txbSCSfileName.Text.Substring(txbSCSfileName.Text.Length - 4, 4)
If SCSfileExtension.StartsWith(".") Then
Select Case SCSfileExtension
Case Is = ".fp1", ".xl1", ".qs5", ".em3", ".we1"
Return True
End Select
Else
MsgBox(msgtxt)
End If
End If
Return boo
End Function
Private errorMsgCountSec As Integer = 0
Private errorMsgCountJoints As Integer = 0
Private booMsgSelectSecAndJointsDisplayedAlready As Boolean = False
Private booMsgReloadDataDisplayedAlready As Boolean = False
Private Sub CompileWarning()
Dim SCSfileExtension As String = txbSCSfileName.Text.Substring(txbSCSfileName.Text.Length - 4, 4)
If SCSfileExtension.StartsWith(".") Then
Select Case SCSfileExtension
Case Is = ".br9"
lblWarningForLoadsNotImported.Text = strNotImportedLoads(3)
Case Is = ".qs5", ".qs6", ".xl1", ".xl2", ".fp1", ".fp2", ".ds1"
lblWarningForLoadsNotImported.Text = strNotImportedLoads(3)
Case Is = ".sp4"
lblWarningForLoadsNotImported.Text = strNotImportedLoads(4)
Case Else
lblWarningForLoadsNotImported.Text = Nothing
End Select
End If
End Sub
Private Sub btnDoStuff_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles btnDoStuff.Click
CheckifStaadIsOpen()
If CheckIfSCSfileNameIsCompiled(True) = False Then Exit Sub
lblSelJointsStrings.Text = Nothing
lblSecMemberProperty.Text = Nothing
cobPrimaryMember.Items.Clear()
booPrimaryMemberIsaColumn = IsPrimaryMemeberAColumn()
booBasePlateJoint = IsBasePlateJoint()
booBraceJoint = IsBraceJoint()
booSpliceJoint = IsSpliceJoint()
CompileWarning()
If booBasePlateJoint Then
btnPrimMembShow.Visible = False
lblPrimaryMember.Visible = False
cobPrimaryMember.Visible = False
Else
btnPrimMembShow.Visible = True
lblPrimaryMember.Visible = True
cobPrimaryMember.Visible = True
End If
If booMsgSelectSecAndJointsDisplayedAlready = False Then
MsgBox("Go to the open Staad model: select SECONDARY members AND JOINTS you want loads from THEN click OK", MsgBoxStyle.OkOnly)
booMsgSelectSecAndJointsDisplayedAlready = True
Exit Sub
End If
Dim strSelectedPoints As String = Nothing
ReDim jointList(0)
Dim NumberOfJoints As Integer = 0
Dim NumberOfSecondaryMembers As Integer = 0
NumberOfSecondaryMembers = objOpenSTAAD1.Geometry.GetNoOfSelectedBeams
NumberOfJoints = objOpenSTAAD1.Geometry.GetNoOfSelectedNodes
If NumberOfSecondaryMembers = 0 Then
If errorMsgCountSec < 2 Then
MsgBox("no secondary member selected, go to Staad and modify selection")
errorMsgCountSec += 1
btnDoStuff_Click(sender, e)
End If
Exit Sub
End If
If NumberOfJoints = 0 Then
If errorMsgCountJoints < 2 Then
MsgBox("no joints selected, go to Staad and modify selection")
errorMsgCountJoints += 1
btnDoStuff_Click(sender, e)
End If
Exit Sub
End If
Dim selNodes(NumberOfJoints - 1) As Integer
objOpenSTAAD1.Geometry.GetSelectedNodes(selNodes, 1)
For i = 0 To NumberOfJoints - 1
ReDim Preserve jointList(i)
jointList(i) = selNodes(i)
strSelectedPoints += jointList(i) + ", "
Next
Dim selSec(NumberOfSecondaryMembers - 1) As Integer
objOpenSTAAD1.Geometry.GetSelectedBeams(selSec, 1)
For i = 0 To NumberOfSecondaryMembers - 1
ReDim Preserve secframeList(i)
secframeList(i) = selSec(i)
Next
lblSelJointsStrings.Text = strSelectedPoints
Dim JointArrayMaxIndex As Integer = Max(0, NumberOfJoints - 1)
ReDim JointData(JointArrayMaxIndex)
Dim BeamList() As Integer
Dim ObjectName() As String
Dim DataB_ObjName(JointArrayMaxIndex, 0) As String
Dim DataB_PropertyName(JointArrayMaxIndex, 0) As String
Dim PropName As String = Nothing
Dim Members As New List(Of String)
Dim S33 As Double
Dim Point1 As String
Dim Point2 As String
Dim x As Double, y As Double, z As Double
Dim x2 As Double, y2 As Double, z2 As Double
PropName = objOpenSTAAD1.Property.GetBeamSectionName(secframeList(0))
If NumberOfSecondaryMembers > 1 Then
Dim PropName2 As String
For k = 1 To NumberOfSecondaryMembers - 1
PropName2 = objOpenSTAAD1.Property.GetBeamSectionName(secframeList(k))
If PropName2 <> PropName Then
MsgBox("secondary members must have the same section property, go to Staad and modify selection")
btnDoStuff_Click(sender, e)
Exit Sub
End If
Next
End If
lblSecMemberProperty.Text = PropName
Dim listofConnectingMembersByJoint(JointArrayMaxIndex) As List(Of Integer)
For p = 0 To JointArrayMaxIndex
listofConnectingMembersByJoint(p) = New List(Of Integer)
Next
Dim dimbeaArray As Integer = objOpenSTAAD1.geometry.GetMemberCount - 1
Dim beamArray(dimbeaArray) As Integer
ret = objOpenSTAAD1.Geometry.GetBeamList(beamArray)
Dim val1 As Integer = 0
Dim val2 As Integer = 0
Dim booFound1, booFound2 As Boolean
For r = 0 To dimbeaArray
ret = objOpenSTAAD1.Geometry.GetMemberIncidence(beamArray(r), val1, val2)
booFound1 = False
booFound2 = False
For k = 0 To JointArrayMaxIndex
If Not booFound1 AndAlso val1 = CInt(jointList(k)) Then
listofConnectingMembersByJoint(k).Add(beamArray(r))
booFound1 = True
End If
If Not booFound2 AndAlso val2 = CInt(jointList(k)) Then
listofConnectingMembersByJoint(k).Add(beamArray(r))
booFound2 = True
End If
Next
Next
For k = 0 To JointArrayMaxIndex
Dim NumberOfConnectedMembers As Integer = listofConnectingMembersByJoint(k).Count
ReDim BeamList(NumberOfConnectedMembers - 1)
For q = 0 To NumberOfConnectedMembers - 1
BeamList(q) = listofConnectingMembersByJoint(k).Item(q)
Next
ReDim ObjectName(NumberOfConnectedMembers - 1)
JointData(k) = New JointDataClass(NumberOfConnectedMembers)
JointData(k).PrimaryMemberIsaColumn = booPrimaryMemberIsaColumn
JointData(k).BasePlateJoint = booBasePlateJoint
JointData(k).BraceJoint = booBraceJoint
JointData(k).SpliceJoint = booSpliceJoint
JointData(k).Label = jointList(k)
Dim maxExt As Integer = NumberOfConnectedMembers - 1
ReDim Preserve DataB_ObjName(JointArrayMaxIndex, maxExt)
ReDim Preserve DataB_PropertyName(JointArrayMaxIndex, maxExt)
For q = 0 To NumberOfConnectedMembers - 1
DataB_ObjName(k, q) = BeamList(q)
PropName = objOpenSTAAD1.Property.GetBeamSectionName(BeamList(q))
Dim PropNameRefNumber As Integer = objOpenSTAAD1.property.GetBeamSectionPropertyTypeNo(BeamList(q))
Dim dWidth, dDepth, dAx, Day, dAz, dIx, dIy, dIz As Double
objOpenSTAAD1.Property.GetBeamProperty(BeamList(q), dWidth, dDepth, dAx, Day, dAz, dIx, dIy, dIz)
S33 = dIy
DataB_PropertyName(k, q) = PropName
JointData(k).GuessedPrimaryMember_property_OverWrite = False
JointData(k).PropertyName(q) = PropName
ObjectName(q) = BeamList(q)
JointData(k).ObjName(q) = ObjectName(q) 'this is the analysis label, example 36-2 ACTUALLY IN STAAD IS ONLY 36 as ObjNameRoot below
JointData(k).PropertyRefValue(q) = S33
JointData(k).GuessedSecondaryMember_property = PropName
Members.Add(PropName)
JointData(k).GetObjNameRoot(q) 'this is the model label, example 36
objOpenSTAAD1.Geometry.GetMemberIncidence(BeamList(q), val1, val2)
Point1 = val1.ToString
Point2 = val2.ToString
If Point1 = jointList(k) Then
JointData(k).ObjNode(q) = 0
Else
JointData(k).ObjNode(q) = 1
End If
ReDim Preserve JointData(k).FrameElements(q)
ret = objOpenSTAAD1.Geometry.GetNodeCoordinates(val1, x, z, y) 'in the macro, z is vertical, in staad y is vertical
ret = objOpenSTAAD1.Geometry.GetNodeCoordinates(val2, x2, z2, y2)
Dim co1() As Double = {x, y, z}
Dim co2() As Double = {x2, y2, z2}
JointData(k).FrameElements(q) = New FrameElement(JointData(k).ObjectNameRoot(q), co1, co2) 'this is the model label, example 36
Next
JointData(k).GuessPrimaryMembersAndAssignSecMembers(secframeList)
Next
If JointArrayMaxIndex > 0 Then
For uu = 1 To JointArrayMaxIndex
For jjjj = 0 To uu - 1
If JointData(jjjj).GuessedPrimaryMember_property <> JointData(uu).GuessedPrimaryMember_property Then
If JointData(jjjj).GuessedPrimaryMember_Name IsNot Nothing And JointData(jjjj).GuessedPrimaryMember_Name IsNot Nothing Then
MsgBox("problem with primary members, it seems members with labels " & JointData(jjjj).GuessedPrimaryMember_Name & " and " & JointData(uu).GuessedPrimaryMember_Name & " have different properties, please check")
Else
MsgBox("problem with primary members, it seems some members have different properties, please check")
End If
Exit For
End If
Next
Next
End If
If booFirstTime Then
Me.Size = New Point(924, formYsize)
cobFilter.SelectedIndex = 0
lblWarning.Text = ""
End If
Dim MembersDistinctList As New List(Of String)
MembersDistinctList = FindDistinctValues(Members)
For r = 0 To MembersDistinctList.Count - 1
cobPrimaryMember.Items.Add(MembersDistinctList.Item(r))
Next
AssignComboBoxValue(cobPrimaryMember, JointData(0).GuessedPrimaryMember_property)
MemorizeListBoxSelection()
ComboDictionary.Clear()
lbxLoads.Items.Clear()
Dim booUsePrimaryLoadCasesInsteadOfCombos As Boolean = False
Dim numberofCombos As Integer = objOpenSTAAD1.Load.GetLoadCombinationCaseCount
If numberofCombos = 0 Then
booUsePrimaryLoadCasesInsteadOfCombos = True
numberofCombos = objOpenSTAAD1.Load.GetPrimaryLoadCaseCount
End If
Dim CombosNumbers(numberofCombos - 1) As Integer
Dim MyName(numberofCombos - 1) As String
If booUsePrimaryLoadCasesInsteadOfCombos Then
objOpenSTAAD1.Load.GetPrimaryLoadCaseNumbers(CombosNumbers)
Else
objOpenSTAAD1.Load.GetLoadCombinationCaseNumbers(CombosNumbers)
End If
For qq = 0 To numberofCombos - 1
MyName(qq) = objOpenSTAAD1.Load.GetLoadCaseTitle(CombosNumbers(qq))
lbxLoads.Items.Add(MyName(qq))
ComboDictionary.Add(MyName(qq), CombosNumbers(qq))
Next
If LoadCasesSelected.Count > 0 Then '141127 revision to reselect previous load cases after data are reloaded
For ww = 0 To LoadCasesSelected.Count - 1
For i = 0 To lbxLoads.Items.Count - 1
If lbxLoads.Items(i).ToString = LoadCasesSelected(ww) Then
lbxLoads.SetSelected(i, True)
Exit For
End If
Next
Next
End If
errorMsgCountSec = 0
errorMsgCountJoints = 0
booFirstTime = False
End Sub
Private ComboDictionary As New Dictionary(Of String, Integer)
Public Sub ExportResults(ByVal LoadCases As String())
If LoadCases.Count = 0 Then
MsgBox("select load cases")
Exit Sub
End If
Dim UnitForce As String
Dim UnitForceInt As Integer = objOpenSTAAD1.output.GetOutputUnitForForce 'FROM tests, it seems just 3 comes out and it's always in KN. User to check if this applies to their system
Dim UnitForceInput As Integer = objOpenSTAAD1.GetInputUnitForForce()
If UnitForceInt = 3 Then
UnitForce = "KN"
Else
MsgBox("set up units for force in VB before proceeding")
Exit Sub
End If
Dim UnitMoment As String
Dim UnitMomentInt As Integer = objOpenSTAAD1.output.GetOutputUnitForMoment 'FROM tests, it seems just 4 comes out and it's always in KN*m. User to check if this applies to their system
Dim UnitLengthInput As Integer = objOpenSTAAD1.GetInputUnitForLength()
If UnitMomentInt = 4 Then
UnitMoment = "kN*m"
Else
MsgBox("set up units for Moment in VB before proceeding")
Exit Sub
End If
Dim multiplierForce As Double = 1
Dim multiplierMoment As Double = 1
Dim roundingfiguresForce As Integer = 2
Dim roundingfiguresMoment As Integer = 2
Dim F1ta() As Double
Dim F2ta() As Double
Dim F3ta() As Double
Dim JM1ta() As Double
Dim JM2ta() As Double
Dim JM3ta() As Double
Dim FrameLabel As String
Dim LCname() As String
Dim Pf(), V2f(), V3f(), M2f(), M3f(), Tf() As Double
Dim Pftemp(), V2ftemp(), V3ftemp(), M2ftemp(), M3ftemp(), Tftemp() As Double
Dim totalCasestoExport As Integer
Dim ForceArray(LoadCasesSelected.Count - 1, 5) As Double
For x = 0 To JointData.Length - 1
If booBasePlateJoint Then
Dim JointLabel As String
JointLabel = JointData(x).Label
Dim lNode As Integer = JointLabel
Dim lLoadCase As Integer
For y As Integer = 0 To LoadCasesSelected.Count - 1
lLoadCase = ComboDictionary.Item(LoadCasesSelected(y).ToString)
Dim dReactionArray(5) As Double
'Dim sras As Integer
Try
objOpenSTAAD1.Output.GetSupportReactions(lNode, lLoadCase, dReactionArray)
Catch ex As Exception
MsgBox("Error. Are results available in the model? did you run analysis?")
Exit Sub
End Try
For www = 0 To 5
ForceArray(y, www) = dReactionArray(www)
Next
Next
Dim Ang As Double = 0
'to adjust if local axis of member is rotated
Ang = objOpenSTAAD1.Property.GetBetaAngle(JointData(x).GuessedSecondaryMember_Name(0))
Ang = Ang / 180 * PI
totalCasestoExport = LoadCasesSelected.Count
ReDim Pf(totalCasestoExport - 1)
ReDim V2f(totalCasestoExport - 1)
ReDim V3f(totalCasestoExport - 1)
ReDim M2f(totalCasestoExport - 1)
ReDim M3f(totalCasestoExport - 1)
ReDim Tf(totalCasestoExport - 1)
ReDim LCname(totalCasestoExport - 1)
ReDim Pftemp(totalCasestoExport - 1)
ReDim V2ftemp(totalCasestoExport - 1)
ReDim V3ftemp(totalCasestoExport - 1)
ReDim M2ftemp(totalCasestoExport - 1)
ReDim M3ftemp(totalCasestoExport - 1)
ReDim Tftemp(totalCasestoExport - 1)
ReDim F1ta(totalCasestoExport - 1)
ReDim F2ta(totalCasestoExport - 1)
ReDim F3ta(totalCasestoExport - 1)
ReDim JM1ta(totalCasestoExport - 1)
ReDim JM2ta(totalCasestoExport - 1)
ReDim JM3ta(totalCasestoExport - 1)
For w = 0 To totalCasestoExport - 1
F1ta(w) = -ForceArray(w, 0)
F2ta(w) = -ForceArray(w, 2) '-z in staad is +y in a tern with z vertical as considerd in the macro
F3ta(w) = ForceArray(w, 1)
JM1ta(w) = ForceArray(w, 3)
JM2ta(w) = -ForceArray(w, 5)
JM3ta(w) = ForceArray(w, 4)
Select Case JointData(x).FrameElements(JointData(x).GuessedSecondaryMember_index(0)).MainDirectionZvertical_0x_1y_2z_3xyPlane_4xzplane_5yzplane_6xyz
Case Is = 0
Pftemp(w) = -F1ta(w) 'axial
V2ftemp(w) = F2ta(w) * Cos(Ang) - F3ta(w) * Sin(Ang) 'major axis
V3ftemp(w) = F2ta(w) * Sin(Ang) + F3ta(w) * Cos(Ang)
Tftemp(w) = JM1ta(w)
M2ftemp(w) = JM2ta(w) * Cos(Ang) - JM3ta(w) * Sin(Ang)
M3ftemp(w) = JM2ta(w) * Sin(Ang) + JM3ta(w) * Cos(Ang)
Case Is = 1
Pftemp(w) = -F2ta(w)
V2ftemp(w) = F3ta(w) * Cos(Ang) - F1ta(w) * Sin(Ang)
V3ftemp(w) = F3ta(w) * Sin(Ang) + F1ta(w) * Cos(Ang)
Tftemp(w) = JM2ta(w)
M2ftemp(w) = JM3ta(w) * Cos(Ang) - JM1ta(w) * Sin(Ang)
M3ftemp(w) = JM3ta(w) * Sin(Ang) + JM1ta(w) * Cos(Ang)
Case Is = 2
Pftemp(w) = -F3ta(w)
V2ftemp(w) = F1ta(w) * Cos(Ang) - F2ta(w) * Sin(Ang)
V3ftemp(w) = F1ta(w) * Sin(Ang) + F2ta(w) * Cos(Ang)
Tftemp(w) = JM3ta(w)
M2ftemp(w) = JM1ta(w) * Cos(Ang) - JM2ta(w) * Sin(Ang)
M3ftemp(w) = JM1ta(w) * Sin(Ang) + JM2ta(w) * Cos(Ang)
Case Else
If w = 0 Then MsgBox("check how to distribute correctly loads along member axes")
'formulas belew are not ok, just general reference, MANUAL modification necessary
Pftemp(w) = -F2ta(w)
V2ftemp(w) = F1ta(w)
V3ftemp(w) = F3ta(w)
Tftemp(w) = JM2ta(w)
M2ftemp(w) = JM1ta(w)
M3ftemp(w) = JM3ta(w)
End Select
LCname(w) = LoadCasesSelected(w)
Pf(w) = CheckMostStressingValue(Pf(w), Pftemp(w))
V2f(w) = CheckMostStressingValue(V2f(w), V2ftemp(w))
V3f(w) = CheckMostStressingValue(V3f(w), V3ftemp(w))
M2f(w) = CheckMostStressingValue(M2f(w), M2ftemp(w))
M3f(w) = CheckMostStressingValue(M3f(w), M3ftemp(w))
Tf(w) = CheckMostStressingValue(Tf(w), Tftemp(w))
Next
Else
For xx = 0 To JointData(x).GuessedSecondaryMember_Name.Length - 1
FrameLabel = JointData(x).GuessedSecondaryMember_Name(xx)
Dim lMemberNo As Integer = FrameLabel
Dim lEnd As Integer = JointData(x).ObjNode(JointData(x).GuessedSecondaryMember_index(xx))
Dim lLoadCase As Integer
For y As Integer = 0 To LoadCasesSelected.Count - 1
lLoadCase = ComboDictionary.Item(LoadCasesSelected(y).ToString)
Dim dForceArray(5) As Double
'Dim sras As Integer
Try
objOpenSTAAD1.Output.GetMemberEndForces(lMemberNo, lEnd, lLoadCase, dForceArray)
Catch ex As Exception
MsgBox("Error. Are results available in the model? did you run analysis?")
Exit Sub
End Try
For www = 0 To 5
ForceArray(y, www) = dForceArray(www)
Next
Next
If x = 0 And xx = 0 Then
totalCasestoExport = LoadCasesSelected.Count
ReDim Pf(totalCasestoExport - 1)
ReDim V2f(totalCasestoExport - 1)
ReDim V3f(totalCasestoExport - 1)
ReDim M2f(totalCasestoExport - 1)
ReDim M3f(totalCasestoExport - 1)
ReDim Tf(totalCasestoExport - 1)
ReDim LCname(totalCasestoExport - 1)
End If
ReDim Pftemp(totalCasestoExport - 1)
ReDim V2ftemp(totalCasestoExport - 1)
ReDim V3ftemp(totalCasestoExport - 1)
ReDim M2ftemp(totalCasestoExport - 1)
ReDim M3ftemp(totalCasestoExport - 1)
ReDim Tftemp(totalCasestoExport - 1)
For w = 0 To totalCasestoExport - 1
'note that in staad P positive means compression, P negative means tension, opposite of SCS; though, in Staad the FX value at the second node (lend=1) of the member is opposite in sign to the first node
If lEnd = 0 Then
Pftemp(w) = -ForceArray(w, 0)
Else 'lend=1
Pftemp(w) = ForceArray(w, 0)
End If
V2ftemp(w) = ForceArray(w, 1) 'major axis
V3ftemp(w) = ForceArray(w, 2)
M2ftemp(w) = ForceArray(w, 4)
M3ftemp(w) = ForceArray(w, 5) 'major axis
Tftemp(w) = ForceArray(w, 3)
LCname(w) = LoadCasesSelected(w)
Pf(w) = CheckMostStressingValue(Pf(w), Pftemp(w))
V2f(w) = CheckMostStressingValue(V2f(w), V2ftemp(w))
V3f(w) = CheckMostStressingValue(V3f(w), V3ftemp(w))
M2f(w) = CheckMostStressingValue(M2f(w), M2ftemp(w))
M3f(w) = CheckMostStressingValue(M3f(w), M3ftemp(w))
Tf(w) = CheckMostStressingValue(Tf(w), Tftemp(w))
Next
Next
End If
Next
If scsModuleGeneric Is Nothing Then
btnSCSopenFile1_Click(btnSCSopenFile, New System.EventArgs)
End If
Try
Dim SecMemberName As String = ChangeNameForHE(lblSecMemberProperty.Text)
Dim PrimMemberName As String = ChangeNameForHE(cobPrimaryMember.SelectedItem.ToString)
scsModuleGeneric.DataPage_Members.SecondaryMemberSection = SecMemberName
If booBasePlateJoint = False And booSpliceJoint = False Then scsModuleGeneric.DataPage_Members.PrimaryMemberSection = PrimMemberName
Select Case UnitForce
Case Is = "lb"
scsModuleGeneric.FormUnits.ForceUnit = "lbf"
roundingfiguresForce = 0
Case Is = "Kip", "kip"
scsModuleGeneric.FormUnits.ForceUnit = "kips"
roundingfiguresForce = 2
Case Is = "KN", "kN"
scsModuleGeneric.FormUnits.ForceUnit = "kN"
roundingfiguresForce = 2
Case Is = "N"
scsModuleGeneric.FormUnits.ForceUnit = "N"
roundingfiguresForce = 0
Case Is = "Tonf", "Ton", "ton", "tons"
scsModuleGeneric.FormUnits.ForceUnit = "kN"
roundingfiguresForce = 2
multiplierForce = 10
Case Is = "Kgf", "kgf"
scsModuleGeneric.FormUnits.ForceUnit = "kg"
roundingfiguresForce = 0
End Select
Select Case UnitMoment
Case Is = "KNm", "kNm", "kN*m", "KN*M", "KNM", "KN*m"
scsModuleGeneric.FormUnits.MomentUnit = "kN*m"
roundingfiguresForce = 2
'SET UP OTHER CASES
End Select
For w = 0 To totalCasestoExport - 1
If w > 9 Then
MsgBox("Results are more than 10 arrays and import is stopped to 10. You could set up a routine in the macro to find most stressful cases or import in more files.")
Exit For
End If
scsModuleGeneric.DataPage_Loads.AxialForce(w) = Round(Pf(w) * multiplierForce, roundingfiguresForce).ToString
If booBraceJoint = False Then
scsModuleGeneric.DataPage_Loads.ShearForceMajorAxis(w) = Round(V2f(w) * multiplierForce, roundingfiguresForce).ToString
scsModuleGeneric.DataPage_Loads.ShearForceMinorAxis(w) = Round(V3f(w) * multiplierForce, roundingfiguresForce).ToString
End If
scsModuleGeneric.DataPage_Loads.MomentMajorAxis(w) = Round(M3f(w) * multiplierMoment, roundingfiguresMoment).ToString
'CAREFUL, MOMENT WEAK AXIS AND TORSION ARE NOT CALCULATED IN SOME SCS MODULES, MAKE SURE YOUR RESTRAINTS IN THE MODEL TAKE THIS INTO CONSIDERATION (hinges where necessary for pin type connections)
If scsModuleGeneric.DataPage_Loads.IsLoadApplicable(claDataPage_Loads.LoadType.MomentMinorAxis) Then scsModuleGeneric.DataPage_Loads.MomentMinorAxis(w) = (Round(M2f(w) * multiplierMoment, roundingfiguresMoment)).ToString
If scsModuleGeneric.DataPage_Loads.IsLoadApplicable(claDataPage_Loads.LoadType.Torsion) Then scsModuleGeneric.DataPage_Loads.Torsion(w) = (Round(Tf(w) * multiplierMoment, roundingfiguresMoment)).ToString
scsModuleGeneric.DataPage_Loads.CaseName(w) = LCname(w)
Next
scsModuleGeneric.OtherControls.Calculate()
MsgBox("done")
Catch ex As Exception
MsgBox("Error in exporting members")
End Try
End Sub
Private Function ChangeNameForHE(ByVal strR As String) As String
If strR.StartsWith("HE") Then
Dim NameMovingtheLetterToFront As String
NameMovingtheLetterToFront = strR.Substring(0, 2) & strR.Substring(strR.Length - 1, 1) & strR.Substring(2, strR.Length - 3)
Return NameMovingtheLetterToFront
ElseIf strR.StartsWith("IS") AndAlso strR.Substring(3, 1) = "B" Then
Dim NameAddSpace As String
NameAddSpace = strR.Substring(0, 4) & " " & strR.Substring(4, strR.Length - 4)
Return NameAddSpace
Else
Return strR
End If
End Function
Private Function CheckMostStressingValue(ByVal vl1 As Double, ByVal vl2 As Double) As Double
If Abs(vl1) > Abs(vl2) Then
Return vl1
Else
Return vl2
End If
End Function
Public Sub AssignComboBoxValue(ByRef cob As ComboBox, ByVal stringa As String)
For i = 0 To cob.Items.Count - 1
If cob.Items(i).ToString = stringa Then
cob.SelectedIndex = i
Exit For
End If
Next
End Sub
Public Function FindDistinctValues(ByVal ListaStart As List(Of String)) As List(Of String)
Dim itemsToRemove As New List(Of Integer)
For j = 1 To ListaStart.Count - 1
For jj = 0 To j - 1
If ListaStart.Item(j) = ListaStart.Item(jj) Then
itemsToRemove.Add(j)
Exit For
End If
Next
Next
If itemsToRemove.Count > 0 Then
For i = itemsToRemove.Count - 1 To 0 Step -1
ListaStart.RemoveAt(itemsToRemove.Item(i))
Next
End If
Return ListaStart
End Function
Public Sub ShowMembers(ByVal _1primary_2secondary As Integer)
If _1primary_2secondary = 1 Or _1primary_2secondary = 2 Then
Dim target As String
CheckifStaadIsOpen()
If JointData IsNot Nothing Then
ret = objOpenSTAAD1.Geometry.clearnodeselection
ret = objOpenSTAAD1.Geometry.clearmemberselection
For j = 0 To jointList.Count - 1
ret = objOpenSTAAD1.Geometry.selectnode(jointList(j))
Next
For j = 0 To JointData.Count - 1
For jj = 0 To JointData(j).ObjectCount - 1
If _1primary_2secondary = 1 Then
target = JointData(j).GuessedPrimaryMember_property
Else
target = JointData(j).GuessedSecondaryMember_property
End If
If JointData(j).PropertyName(jj) = target Then
ret = objOpenSTAAD1.Geometry.selectbeam(JointData(j).ObjectNameRoot(jj))
End If
Next
Next
End If
End If
End Sub
Private strWarning As String = "You cannot choose more than 10 cases"
Private Sub btnSecMembShow_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles btnSecMembShow.Click
ShowMembers(2)
End Sub
Private Sub btnPrimMembShow_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles btnPrimMembShow.Click
ShowMembers(1)
End Sub
Private Sub cobPrimaryMember_SelectedIndexChanged(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles cobPrimaryMember.SelectedIndexChanged
For Each item In JointData
item.GuessedPrimaryMember_property_OverWrite = True
item.GuessedPrimaryMember_property = cobPrimaryMember.SelectedItem
Next
End Sub
Private LoadCasesSelected As String()
Private Sub btnExportToSCS_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles btnExportToSCS.Click
MemorizeListBoxSelection()
ExportResults(LoadCasesSelected)
Personalization()
End Sub
Private Sub Personalization()
End Sub
Private Sub MemorizeListBoxSelection()
Dim value As ListBox.SelectedObjectCollection
value = lbxLoads.SelectedItems
Dim totalnumber As Integer = value.Count
If totalnumber > 10 Then
lblWarning.Text = strWarning & ", only first 10 cases will be exported"
Else
lblWarning.Text = ""
End If
ReDim LoadCasesSelected(totalnumber - 1)
For i = 0 To Min(10, totalnumber - 1)
LoadCasesSelected(i) = value(i).ToString
Next
End Sub
Private Sub btnFilter_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles btnFilter.Click
Dim stringToLookFor As String = txbFilter.Text
If chbFilter.Checked = False Then lbxLoads.ClearSelected()
Dim booIgnoreCase As Boolean = Not chbCaseSensitive.Checked
Dim coun As Integer = 0
Dim strComp As System.StringComparison = StringComparison.CurrentCultureIgnoreCase
If chbCaseSensitive.Checked Then strComp = StringComparison.CurrentCulture
For i = 0 To lbxLoads.Items.Count - 1
Select Case cobFilter.SelectedIndex
Case Is = 0
If lbxLoads.Items(i).ToString.StartsWith(stringToLookFor, booIgnoreCase, Nothing) Then
lbxLoads.SetSelected(i, True)
coun += 1
End If
Case Is = 1
If lbxLoads.Items(i).ToString.IndexOf(stringToLookFor, 0, strComp) > -1 Then
lbxLoads.SetSelected(i, True)
coun += 1
End If
End Select
Next
If coun > 10 Then
lblWarning.Text = strWarning
Else
lblWarning.Text = ""
End If
End Sub
Private Sub btnExitSCS_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles btnExitSCS.Click
scsModuleGeneric.Close()
scsModuleGeneric = Nothing
End Sub
Private Sub btnFormOnTop_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles btnFormOnTop.Click
If Me.TopMost Then
Me.TopMost = False
btnFormOnTop.Text = "Keep form on top of others"
Else
Me.TopMost = True
btnFormOnTop.Text = "Don't keep form on top of others"
End If
End Sub
Private Sub btnFindSimilar_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles btnFindSimilar.Click
If CheckIfSCSfileNameIsCompiled(True) = False Then Exit Sub
lblVisualCheck.Visible = True
Dim PropName As String = Nothing
Dim SecProp As String = lblSecMemberProperty.Text
Dim PrimProp As String = cobPrimaryMember.SelectedItem.ToString
Dim dimbeaArray As Integer = objOpenSTAAD1.geometry.GetMemberCount - 1
Dim beamArray(dimbeaArray) As Integer
Dim dimsuppArray As Integer = objOpenSTAAD1.support.GetSupportCount - 1
Dim supportArray(dimsuppArray) As Integer
ret = objOpenSTAAD1.Geometry.GetBeamList(beamArray)
Dim ListSecMemb As New List(Of Integer)
Dim ListSecMembTemp As New List(Of Integer)
Dim ListSecJoints As New List(Of Integer)
Dim ListPrimMemb As New List(Of Integer)
Dim ListPrimJoints As New List(Of Integer)
Dim val1 As Integer = 0
Dim val2 As Integer = 0
Dim booSamePropertyForPrimAndSec As Boolean = False
Dim booMessageSamePropDisplayed As Boolean = False
booBasePlateJoint = IsBasePlateJoint()
booBraceJoint = IsBraceJoint()
booSpliceJoint = IsSpliceJoint()
If SecProp = PrimProp Then booSamePropertyForPrimAndSec = True
For r = 0 To dimbeaArray
PropName = objOpenSTAAD1.Property.GetBeamSectionName(beamArray(r))
If PropName = SecProp Then
If booSamePropertyForPrimAndSec Or booSpliceJoint Then
ListSecMembTemp.Add(beamArray(r))
Else
ListSecMemb.Add(beamArray(r))
End If
ret = objOpenSTAAD1.Geometry.GetMemberIncidence(beamArray(r), val1, val2)
ListSecJoints.Add(val1)
ListSecJoints.Add(val2)
End If
If booBasePlateJoint = False And booSamePropertyForPrimAndSec = False And booSpliceJoint = False Then
If PropName = PrimProp Then
ListPrimMemb.Add(beamArray(r))
ret = objOpenSTAAD1.Geometry.GetMemberIncidence(beamArray(r), val1, val2)
ListPrimJoints.Add(val1)
ListPrimJoints.Add(val2)
End If
End If
Next
If booBasePlateJoint Then
ret = objOpenSTAAD1.Support.getsupportnodes(supportArray)
For r = 0 To dimsuppArray
ListPrimJoints.Add(supportArray(r))
Next
End If
Dim ListIntersection As New List(Of Integer)
If (booSamePropertyForPrimAndSec Or booSpliceJoint) And ListSecMembTemp.Count > 0 Then
Dim counter As Integer
' Dim EliminatedJoints As Integer = 0
For a = 0 To ListSecJoints.Count - 1
' a = a - EliminatedJoints
counter = 1
For b = a + 1 To ListSecJoints.Count - 1
Try
If ListSecJoints.Item(a) = ListSecJoints.Item(b) Then
counter += 1
ListSecJoints.Remove(b)
' EliminatedJoints += 1
End If
Catch ex As Exception
End Try
Next
If counter = 2 Then
If booSpliceJoint Then ListIntersection.Add(ListSecJoints.Item(a))
ElseIf counter > 2 Then
If booSpliceJoint = False Then ListIntersection.Add(ListSecJoints.Item(a))
End If
Next
For c = 0 To ListSecMembTemp.Count - 1
ret = objOpenSTAAD1.Geometry.GetMemberIncidence(ListSecMembTemp.Item(c), val1, val2)
For d = 0 To ListIntersection.Count - 1
If val1 = ListIntersection.Item(d) Or val2 = ListIntersection.Item(d) Then
ListSecMemb.Add(ListSecMembTemp.Item(c))
Exit For
End If
Next
Next
Else
ListIntersection = ListPrimJoints.Intersect(ListSecJoints).ToList
End If
If ListIntersection.Count > 0 Then
If booSamePropertyForPrimAndSec And booSpliceJoint = False Then
MsgBox("primary and secondary members have the same property " & PropName & _
" so the macro cannot understand which members are secondary and which primary." & _
" Right now all members have been selected therefore manually unselect primary members")
End If
ret = objOpenSTAAD1.Geometry.clearnodeselection
ret = objOpenSTAAD1.Geometry.clearmemberselection
For g = 0 To ListIntersection.Count - 1
ret = objOpenSTAAD1.Geometry.SelectNode(ListIntersection.Item(g))
Next
For g = 0 To ListSecMemb.Count - 1
ret = objOpenSTAAD1.Geometry.GetMemberIncidence(ListSecMemb.Item(g), val1, val2)
For h = 0 To ListIntersection.Count - 1
If val1 = ListIntersection.Item(h) Or val2 = ListIntersection.Item(h) Then
ret = objOpenSTAAD1.Geometry.Selectbeam(ListSecMemb.Item(g))
Exit For
End If
Next
Next
End If
If booMsgReloadDataDisplayedAlready = False Then
MsgBox(strReLoadData)
booMsgReloadDataDisplayedAlready = True
End If
End Sub
Private Sub btnPath_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles btnPath.Click
OpenFileDialog1.Title = "choose SCS file to open"
'OpenFileDialog1.Filter = strDocDialog
If OpenFileDialog1.ShowDialog() = Windows.Forms.DialogResult.Cancel Then Exit Sub 'gaetano
Dim sFilePathOpen As String
sFilePathOpen = OpenFileDialog1.FileName
If sFilePathOpen = Nothing Then Exit Sub
If System.IO.File.Exists(sFilePathOpen) = False Then Exit Sub
Dim exteN As String = sFilePathOpen.Substring(sFilePathOpen.Length - 3, 3)
Select Case exteN
Case Is = "fp1", "fp2", "me0", "cb8", "br9", "em3", "sp4", "ds1", "qs5", "qs6", "we1", "ap7", "xl1", "xl2"
Dim pos As Integer = sFilePathOpen.LastIndexOf("\")
txbSCSfileName.Text = sFilePathOpen.Substring(pos + 1, sFilePathOpen.Length - (pos + 1))
WorkingPath = sFilePathOpen.Substring(0, pos + 1)
Case Else
MsgBox("this is not a valid SCS file")
End Select
End Sub
Private Sub txbFilter_TextChanged(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles txbFilter.TextChanged
If txbFilter.Text = Nothing Then
btnFilter.Enabled = False
Else
btnFilter.Enabled = True
End If
End Sub
Private Sub txbSCSfileName_TextChanged(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles txbSCSfileName.TextChanged
If CheckIfSCSfileNameIsCompiled(False) Then
btnSCSopenFile.Enabled = True
btnDoStuff.Enabled = True
End If
End Sub
Private Sub lbxSCS_SelectedIndexChanged(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles lbxSCS.SelectedIndexChanged
Dim value As Integer = lbxSCS.SelectedIndex
Select Case value
Case Is = 0
txbSCSfileName.Text = ".fp1"
Case Is = 1
txbSCSfileName.Text = ".fp2"
Case Is = 2
txbSCSfileName.Text = ".xl1"
Case Is = 3
txbSCSfileName.Text = ".xl2"
Case Is = 4
txbSCSfileName.Text = ".qs5"
Case Is = 5
txbSCSfileName.Text = ".qs6"
Case Is = 6
txbSCSfileName.Text = ".em3"
Case Is = 7
txbSCSfileName.Text = ".ap7"
Case Is = 8
txbSCSfileName.Text = ".we0"
Case Is = 9
txbSCSfileName.Text = ".cb8"
Case Is = 10
txbSCSfileName.Text = ".ds1"
Case Is = 11
txbSCSfileName.Text = ".sp4"
Case Is = 12
txbSCSfileName.Text = ".br9"
End Select
lbxSCS.Visible = False
End Sub
Private Sub btnNewSCS_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles btnNewSCS.Click
lbxSCS.Visible = True
End Sub
End Class
Public Class FrameElement
Private m_label As String
Public Property Label() As String
Get
Return m_label
End Get
Set(ByVal value As String)
m_label = value
End Set
End Property
Public Sub New()
End Sub
Private m_coordpoint1(2) As Double
Private m_coordpoint2(2) As Double
Public Property CoordPoint1() As Double()
Get
Return m_coordpoint1
End Get
Set(ByVal value As Double())
m_coordpoint1 = value
End Set
End Property
Public Property CoordPoint2() As Double()
Get
Return m_coordpoint2
End Get
Set(ByVal value As Double())
m_coordpoint2 = value
End Set
End Property
Public Sub New(ByVal label As String, ByVal coord1() As Double, ByVal coord2() As Double)
m_label = label
If coord1.Count = 3 Then m_coordpoint1 = coord1
If coord2.Count = 3 Then m_coordpoint2 = coord2
End Sub
Private m_vector(2) As Double
Private m_vectornormalized(2) As Double
Private m_length As Double
Public ReadOnly Property VectorNormalized() As Double()
Get
For k = 0 To 2
m_vector(k) = m_coordpoint2(k) - m_coordpoint1(k)
Next
m_length = Sqrt(m_vector(0) ^ 2 + m_vector(1) ^ 2 + m_vector(2) ^ 2)
For k = 0 To 2
m_vectornormalized(k) = m_vector(k) / m_length
Next
Return m_vectornormalized
End Get
End Property
Public ReadOnly Property MainDirectionZvertical_0x_1y_2z_3xyPlane_4xzplane_5yzplane_6xyz() As Integer
Get
Dim refVal As Double = 0.95 'this means an angle approx between 72° and 90°
Dim refVal2 As Double = 0.05
If Abs(VectorNormalized(0)) >= refVal Then
Return 0
ElseIf Abs(m_vectornormalized(1)) >= refVal Then
Return 1
ElseIf Abs(m_vectornormalized(2)) >= refVal Then
Return 2
ElseIf Abs(m_vectornormalized(2)) <= refVal2 Then
Return 3
ElseIf Abs(m_vectornormalized(1)) <= refVal2 Then
Return 4
ElseIf Abs(m_vectornormalized(0)) <= refVal2 Then
Return 5
Else
Return 6
End If
End Get
End Property
End Class
Module CommonMethods
Public Function AngleBetweenFrameElements(ByVal Frame1 As FrameElement, ByVal Frame2 As FrameElement) As Double 'angle in radians between frame elements
Dim angleinRadians As Double = Acos(Frame1.VectorNormalized(0) * Frame2.VectorNormalized(0) + Frame1.VectorNormalized(1) * Frame2.VectorNormalized(1) + Frame1.VectorNormalized(2) * Frame2.VectorNormalized(2))
If angleinRadians >= PI Then angleinRadians += -PI
Return angleinRadians
End Function
End Module
Public Class JointDataClass
Private m_primarymemberisacolumn As Boolean = False
Private m_frameelements() As FrameElement
Private m_objname() As String
Private m_pointnumber() As Integer
Private m_propertyname() As String
Private m_propertyrefvalue() As Double
Private m_propertyrefvaluesorted() As Double
Private m_objectcount As Integer
Private m_objnameroot() As String
Private m_objnode() As Integer '0 first joint, 1 second joint
Private m_objnamesecondpart() As String
Private m_baseplatejoint As Boolean = False
Private m_bracejoint As Boolean = False
Private m_splicejoint As Boolean = False
Public Property SpliceJoint() As Boolean
Get
Return m_splicejoint
End Get
Set(ByVal value As Boolean)
m_splicejoint = value
End Set
End Property
Public Property BraceJoint() As Boolean
Get
Return m_bracejoint
End Get
Set(ByVal value As Boolean)
m_bracejoint = value
End Set
End Property
Public Property BasePlateJoint() As Boolean
Get
Return m_baseplatejoint
End Get
Set(ByVal value As Boolean)
m_baseplatejoint = value
End Set
End Property
Public Property ObjNode() As Integer()
Get
Return m_objnode
End Get
Set(ByVal value() As Integer)
m_objnode = value
End Set
End Property
Public Property PrimaryMemberIsaColumn() As Boolean
Get
Return m_primarymemberisacolumn
End Get
Set(ByVal value As Boolean)
m_primarymemberisacolumn = value
End Set
End Property
Public Property FrameElements() As FrameElement()
Get
Return m_frameelements
End Get
Set(ByVal value() As FrameElement)
m_frameelements = value
End Set
End Property
Public ReadOnly Property ObjectCount() As Integer
Get
Return m_objectcount
End Get
End Property
Public Property ObjName() As String()
Get
Return m_objname
End Get
Set(ByVal value As String())
m_objname = value
End Set
End Property
Public Property PointNumber() As Integer()
Get
Return m_pointnumber
End Get
Set(ByVal value As Integer())
m_pointnumber = value
End Set
End Property
Public Property PropertyRefValue() As Double()
Get
Return m_propertyrefvalue
End Get
Set(ByVal value As Double())
m_propertyrefvalue = value
End Set
End Property
Public Property PropertyName() As String()
Get
Return m_propertyname
End Get
Set(ByVal value As String())
m_propertyname = value
End Set
End Property
Public Sub New(ByVal objcount As Integer)
m_objectcount = objcount
If m_objectcount = 0 Then
MsgBox("problem")
End If
ReDim m_pointnumber(m_objectcount - 1)
ReDim m_objname(m_objectcount - 1)
ReDim m_propertyname(m_objectcount - 1)
ReDim m_objnameroot(m_objectcount - 1)
ReDim m_objnode(m_objectcount - 1)
ReDim m_objnamesecondpart(m_objectcount - 1)
ReDim m_propertyrefvalue(m_objectcount - 1)
ReDim m_propertyrefvaluesorted(m_objectcount - 1)
End Sub
Private m_guessedprimarymember_name As String
Private m_guessedsecondarymember_name() As String
Public Property GuessedPrimaryMember_Name() As String
Get
Return m_guessedprimarymember_name
End Get
Set(ByVal value As String)
m_guessedprimarymember_name = value
End Set
End Property
Public Property GuessedSecondaryMember_Name() As String()
Get
Return m_guessedsecondarymember_name
End Get
Set(ByVal value() As String)
m_guessedsecondarymember_name = value
End Set
End Property
Private m_guessedprimarymember_property_OverWrite As Boolean = False
Public Property GuessedPrimaryMember_property_OverWrite() As Boolean
Get
Return m_guessedprimarymember_property_OverWrite
End Get
Set(ByVal value As Boolean)
m_guessedprimarymember_property_OverWrite = value
CheckIfCustomAssignedPrimaryMemberPropertyIsOkInThisJoint()
End Set
End Property
Private Sub CheckIfCustomAssignedPrimaryMemberPropertyIsOkInThisJoint()
If m_baseplatejoint = False Then
If m_guessedprimarymember_property_OverWrite Then
Dim booCheckIsOk = False
For j = 0 To m_objectcount - 1
If m_guessedprimarymember_property = m_propertyname(j) Then
m_guessedprimarymember_name = m_objname(j)
m_guessedprimarymember_index = j
booCheckIsOk = True
Exit For
End If
Next
If booCheckIsOk Then
m_jointisverifiedtogiveloads = True
Else
m_jointisverifiedtogiveloads = False
MsgBox("Joint " & m_label & " doesn't have any member connected with the primary member property " & m_guessedprimarymember_property & _
"therefore its load data will not be included in the export")
End If
End If
End If
End Sub
Private m_jointisverifiedtogiveloads As Boolean = False
Public ReadOnly Property JointIsVerifiedToGiveLoads() As Boolean 'this is false when the primary member property assigned can't be found in the joint
Get
Return m_jointisverifiedtogiveloads
End Get
End Property
Private m_guessedprimarymember_property As String
Private m_guessedsecondarymember_property As String
Public Property GuessedPrimaryMember_property() As String
Get
If m_guessedprimarymember_property_OverWrite = False Then m_guessedprimarymember_property = m_propertyname(GuessedPrimaryMember_index)
Return m_guessedprimarymember_property
End Get
Set(ByVal value As String)
m_guessedprimarymember_property = value
CheckIfCustomAssignedPrimaryMemberPropertyIsOkInThisJoint()
End Set
End Property
Public Property GuessedSecondaryMember_property() As String
Get
Return m_guessedsecondarymember_property
End Get
Set(ByVal value As String)
m_guessedsecondarymember_property = value
End Set
End Property
Private m_guessedprimarymember_index As String
Private m_guessedsecondarymember_index() As String
Public ReadOnly Property GuessedPrimaryMember_index() As String
Get
' m_guessedprimarymember_index = GetIndexByObjName(m_guessedprimarymember_name)
Return m_guessedprimarymember_index
End Get
'Set(ByVal value As String)
' m_guessedprimarymember_index = value
'End Set
End Property
Public ReadOnly Property GuessedSecondaryMember_index() As String()
Get
'For i = 0 To m_guessedsecondarymember_name.Count - 1
' m_guessedsecondarymember_index(i) = GetIndexByObjName(m_guessedsecondarymember_name(i))
'Next
Return m_guessedsecondarymember_index
End Get
'Set(ByVal value As String)
' m_guessedsecondarymember_index = value
'End Set
End Property
Private Function GetIndexByObjName(ByVal name As String) As Integer
For k = 0 To m_objectcount - 1
If m_objname(k) = name Then
Return k
End If
Next
Return Nothing
End Function
Public ReadOnly Property ObjectNameRoot() As String()
Get
Return m_objnameroot
End Get
End Property
Private m_label As String
Public Property Label() As String
Get
Return m_label
End Get
Set(ByVal value As String)
m_label = value
End Set
End Property
Private m_listofsecondarymember
Public Sub GetObjNameRoot(ByVal j As Integer)
m_objnameroot(j) = m_objname(j)
End Sub
Private m_SecMembersInThisJointCount As Integer = 0
Private m_PrimMembersInThisJointCount As Integer = 0
Public Sub GuessPrimaryMembersAndAssignSecMembers(ByVal SecMembers As String())
m_SecMembersInThisJointCount = 0
For j = 0 To m_objectcount - 1
'GetObjNameRoot(j) not needed since it has been called to assign values to FrameElements
For i = 0 To SecMembers.Count - 1
If m_objnameroot(j) = SecMembers(i) Then
ReDim Preserve m_guessedsecondarymember_name(m_SecMembersInThisJointCount)
ReDim Preserve m_guessedsecondarymember_index(m_SecMembersInThisJointCount)
m_guessedsecondarymember_name(m_SecMembersInThisJointCount) = m_objname(j)
m_guessedsecondarymember_index(m_SecMembersInThisJointCount) = j
m_guessedsecondarymember_property = m_propertyname(j) 'revision on 20141127
m_SecMembersInThisJointCount += 1
End If
Next
Next
If m_SecMembersInThisJointCount = 0 Then
MsgBox("no secondary member selected for joint " & m_label)
m_jointisverifiedtogiveloads = False
Else
m_PrimMembersInThisJointCount = 0
For j = 1 To m_objectcount - 1
For k = 0 To m_SecMembersInThisJointCount - 1
If j <> m_guessedsecondarymember_index(k) Then
If m_splicejoint = True Then
If m_propertyname(j) = m_propertyname(m_guessedsecondarymember_index(k)) Then
m_guessedprimarymember_name = m_objname(j)
m_guessedprimarymember_index = j
m_jointisverifiedtogiveloads = True
End If
Else
Dim anG As Double = AngleBetweenFrameElements(m_frameelements(m_guessedsecondarymember_index(k)), m_frameelements(j))
Dim angDegrees As Double = anG / PI * 180
If Abs(90 - angDegrees) <= acceptedangleDeltafrom90() Then
m_guessedprimarymember_name = m_objname(j)
m_guessedprimarymember_index = j
m_jointisverifiedtogiveloads = True
End If
End If
End If
Next
Next
End If
End Sub
Private Function acceptedangleDeltafrom90() As Double
If m_bracejoint Then
Return 75
Else
Return 15
End If
End Function
End Class
|
|
|
|
|
